Touchpad

Removing touchpad

1 Follow the procedure in Before working inside your computer.

2 Remove the:

a base cover

b battery

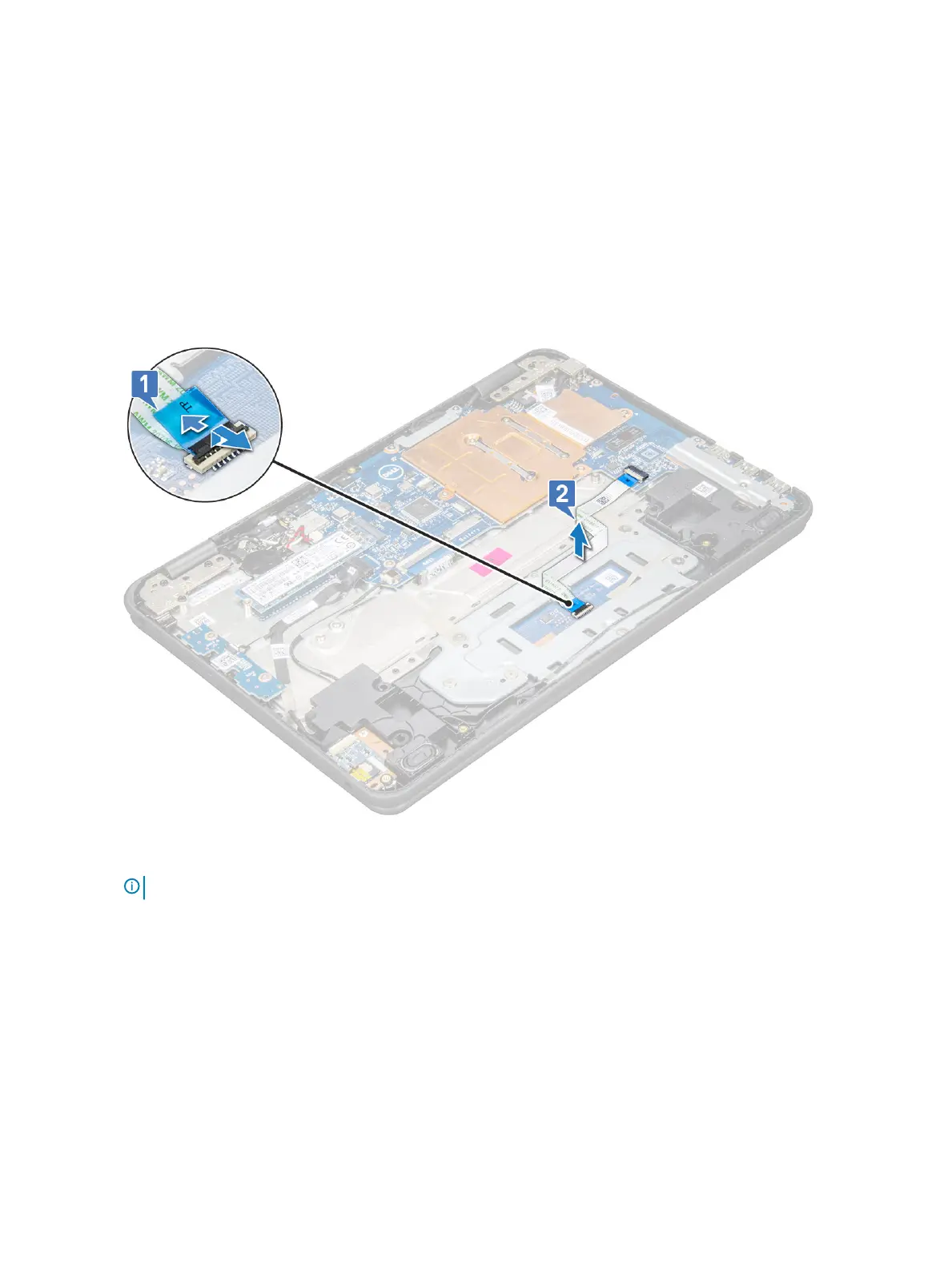

3 To remove the touchpad cable:

a Lift the latch, and disconnect the touchpad cable from the connector on the touchpad [1].

b Peel o the adhesive-backed cable to release it from the touchpad bracket [2].

4 To remove touchpad metal bracket:

a Remove the six M2x2 and one M2x3 screw that secures the metal bracket to the system.

NOTE

: Remove the adhesive tape that secures the speaker cable on the metal bracket.

Disassembly and reassembly 21
