Dell Latitude 3190 2-in-1 User Manual

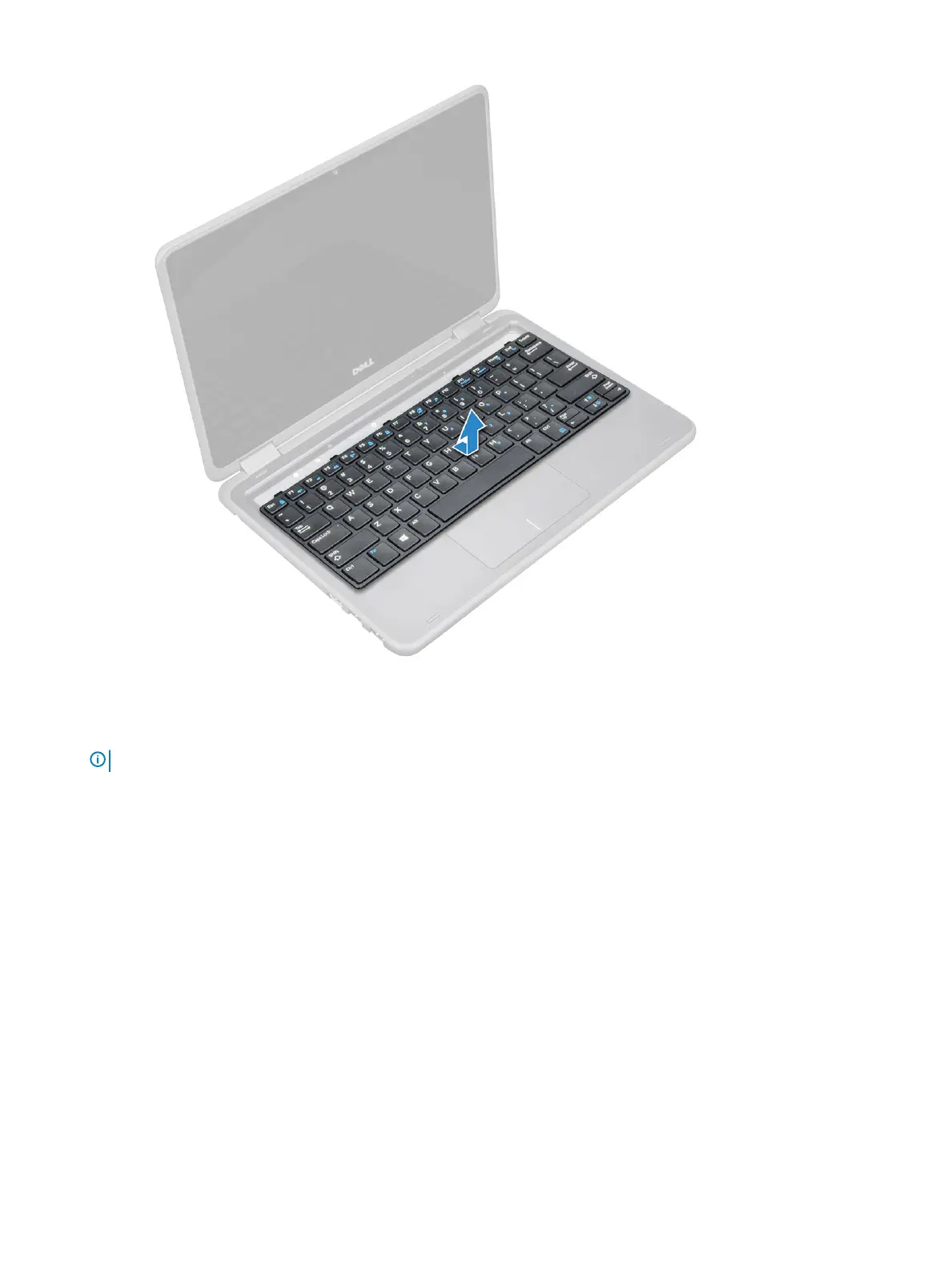

6 Slide the keyboard outwards, away from the computer, and lift the keyboard away from the computer.
Installing keyboard
1
NOTE
: Insert the keyboard connector through the gap in the palm rest.
Align the keyboard trim with the tabs on the computer, and press it until it clicks into place.
16
Disassembly and reassembly

Dell Latitude 3190 2-in-1 Specifications

General

Graphics	Intel UHD Graphics 600
Processor	Intel Celeron N4100
RAM	4GB DDR4
Storage	64GB eMMC
Display	11.6-inch HD (1366 x 768) Touchscreen
Operating System	Windows 10 Pro
Battery	3-Cell 42 WHr Battery
Weight	1.44 kg (3.17 lbs)
Ports	1 x HDMI
Wireless	802.11ac Wi-Fi, Bluetooth 5.0
Camera	720p HD camera
