Dell Latitude 7430 Service Manual

5. Slide the microSIM-card tray into the microSIM-card tray slot on the computer, and push it to lock in place.
Installing the microSIM-card tray
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

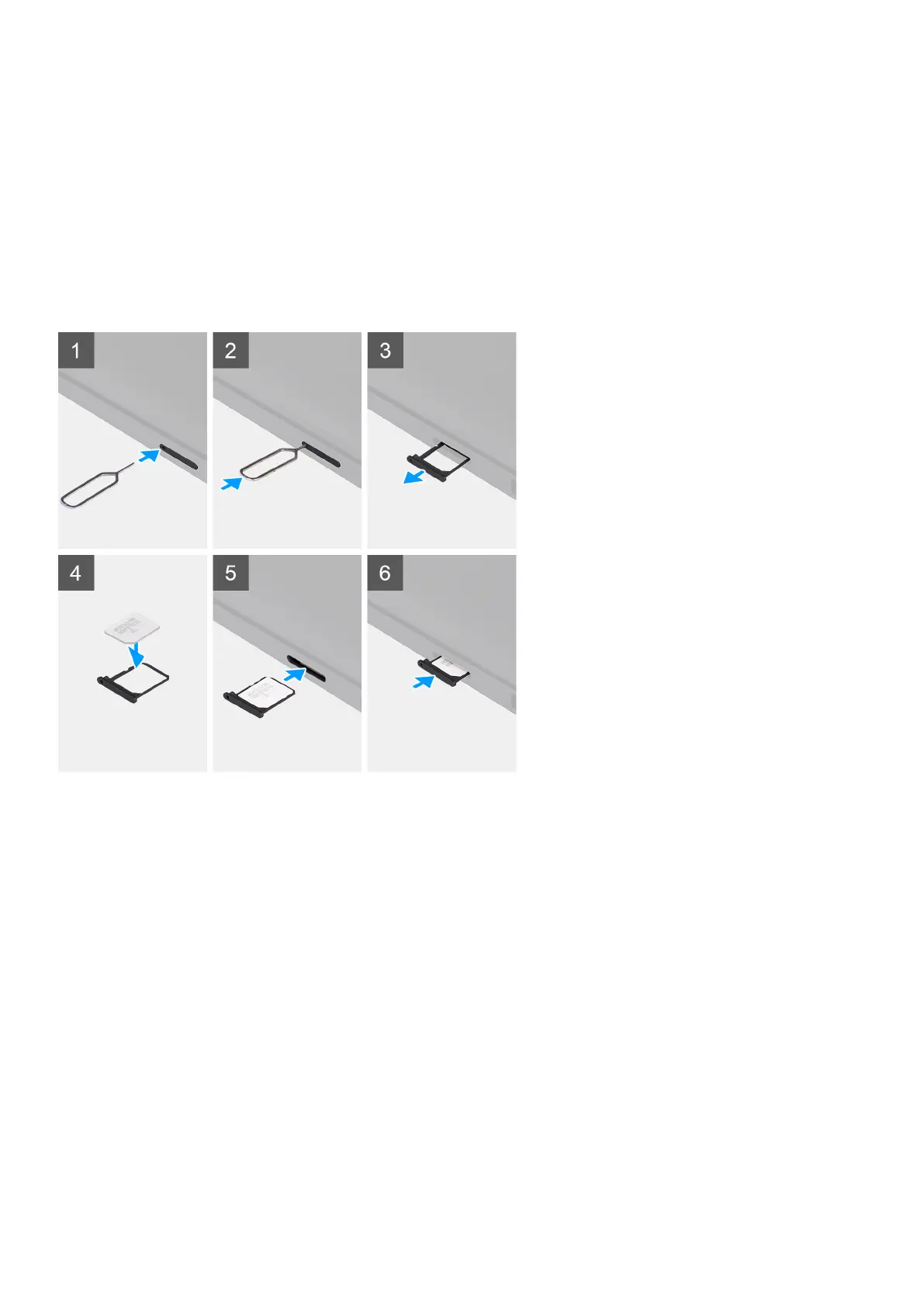

The following images indicate the location of the microSIM-card tray and provide a visual representation of the installation
procedure.
Steps
1. Insert a pin into the microSIM-card tray release hole to release the microSIM-card tray.
2. Push the pin to disengage the lock, and eject the microSIM-card tray.
3. Align and place the microSIM card in the microSIM-card slot on the microSIM-card tray.
4. Slide the microSIM-card tray into the microSIM-card tray slot on the computer, and push it to lock in place.
Next steps
1. Follow the procedure in After working inside your computer.
Base cover
Removing the base cover
Prerequisites
1. Follow the procedure in Before working inside your computer.
14
Removing and installing components

Dell Latitude 7430 Specifications

General

Processor	12th Gen Intel Core i5/i7
RAM	Up to 32GB DDR4
Graphics	Intel Iris Xe Graphics
Bluetooth	Bluetooth 5.2
Display	14-inch FHD (1920 x 1080)
Storage	Up to 1TB SSD
Operating System	Windows 11 Pro
Battery	4-cell 58 Whr
Ports	HDMI 2.0
Wireless	Wi-Fi 6E (802.11ax)
Security	Fingerprint reader, Smart Card reader, TPM 2.0
