Steps

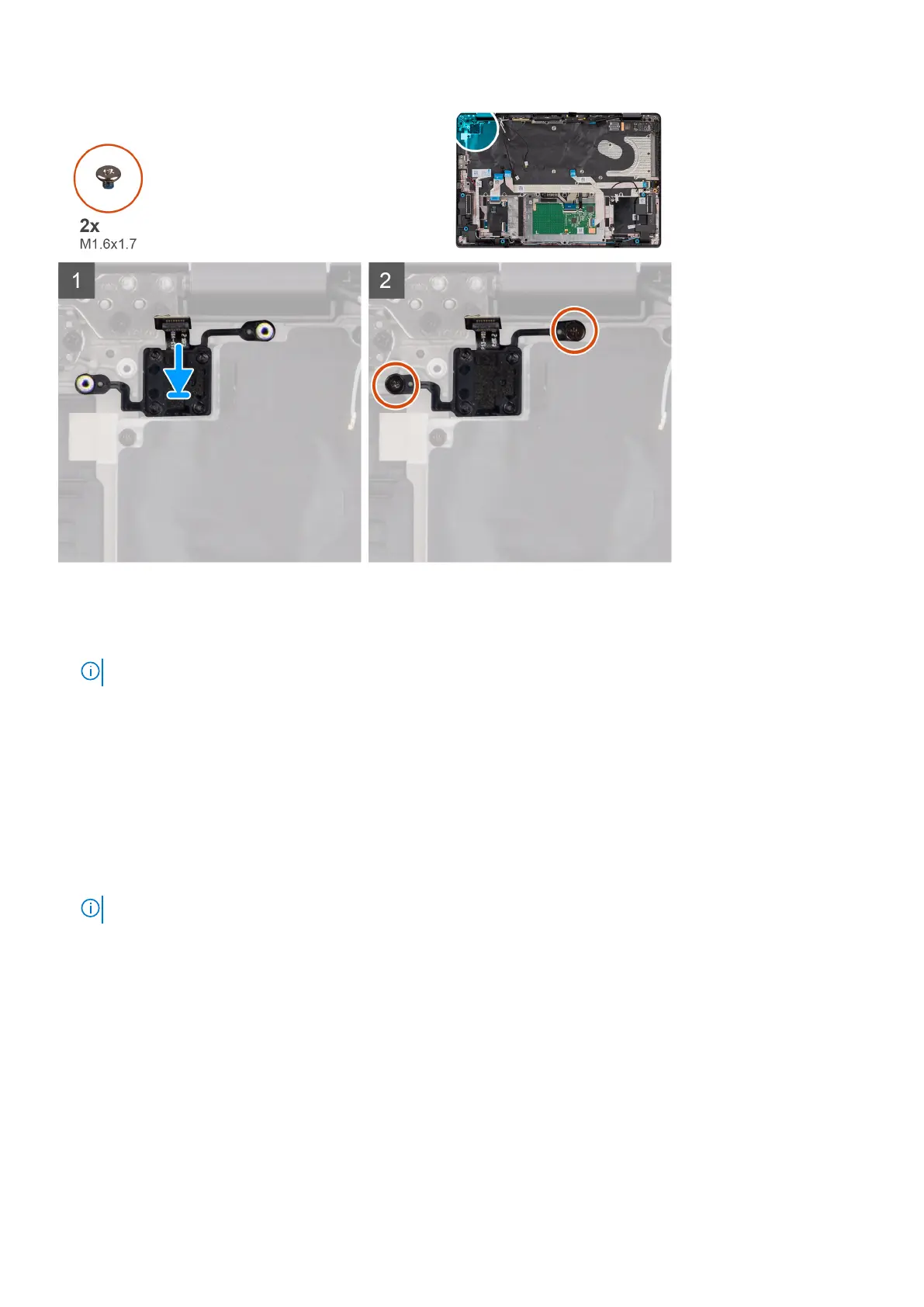

1. Place the power button with optional fingerprint reader into its slot on the palm-rest and keyboard assembly.
2. Adhere the fingerprint reader flexible printed circuits to the connector on the system.
NOTE: This step applies only to computers shipped with a power button with fingerprint reader installed.
3. Align the screw hole on the power button with optional fingerprint reader to the screw hole on the palm-rest and keyboard
assembly.
4. Replace the two screws (M1.6x1.7) to secure the power button with optional fingerprint reader to the palm-rest and
keyboard assembly.
Next steps
1. Install the system board.
2. Install the thermal module.
3. Install the 3-cell battery or the 4-cell battery, whichever applicable.
4. Install the 4G WWAN card or the 5G WWAN card, whichever applicable.
NOTE: This procedure applies only to computers shipped with a WWAN card installed.
5. Install the M.2 2230 solid-state drive or the M.2 2280 solid-state drive, whichever applicable.
6. Install the base cover.
7. Install the microSIM-card tray.
8. Follow the procedure in After working inside your computer.
Keyboard
Removing the keyboard
Prerequisites
1. Follow the procedure in Before working inside your computer.
