Dell Latitude 7480 - Page 49

h. heat sink assembly
i. coin cell battery
j. speaker
k. display assembly
l. system board
m. keyboard

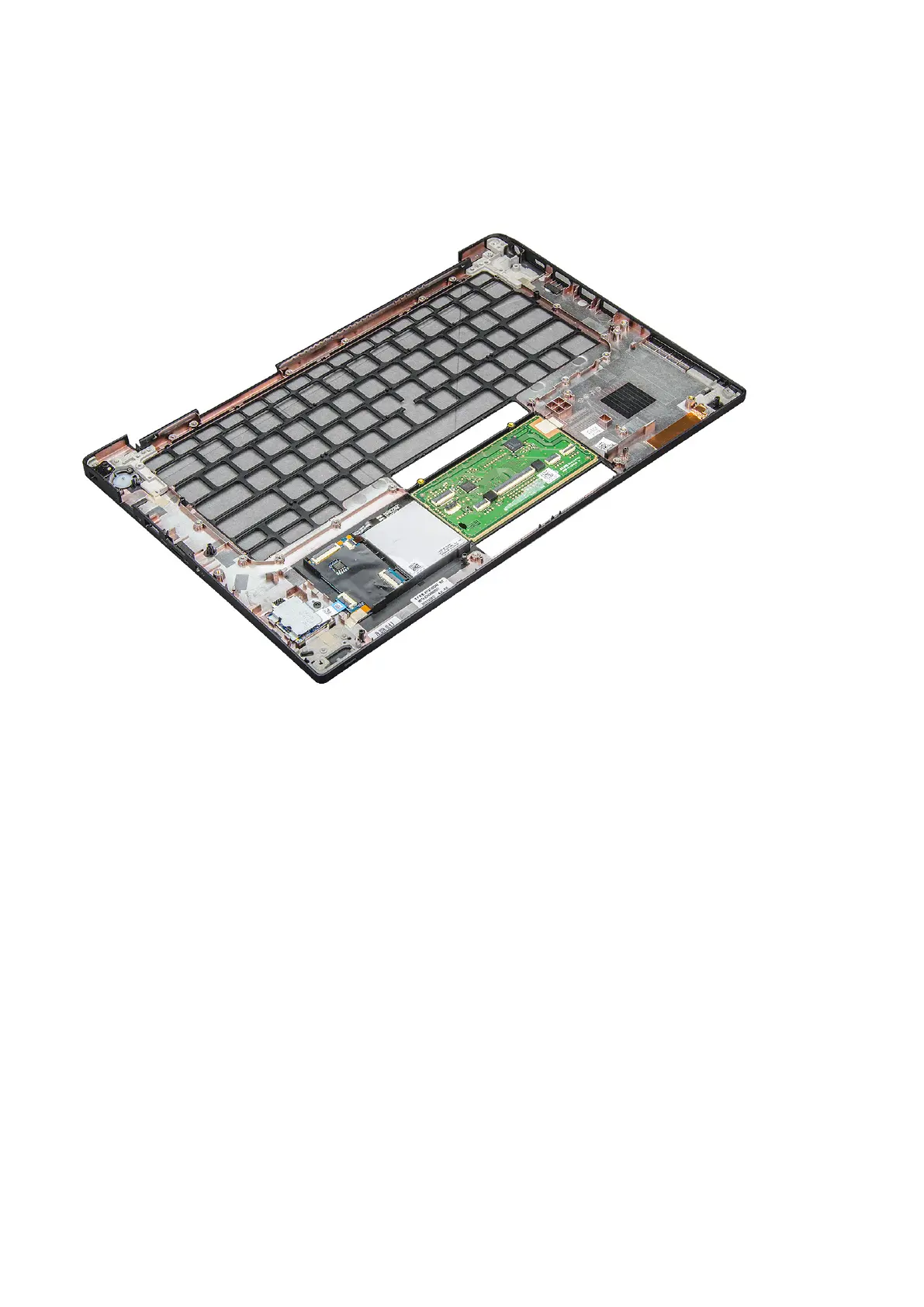

The component that you are left with is the palm rest.
3. Replace the palm rest.
4. Install the:
a. keyboard
b. system board
c. display assembly
d. speaker
e. coin cell battery
f. heatsink
g. power connector port
h. WLAN card
i. WWAN card
j. PCIe SSD
k. memory
l. battery
m. base cover
5. Follow the procedure in After working inside your computer.
Disassembly and reassembly
49
