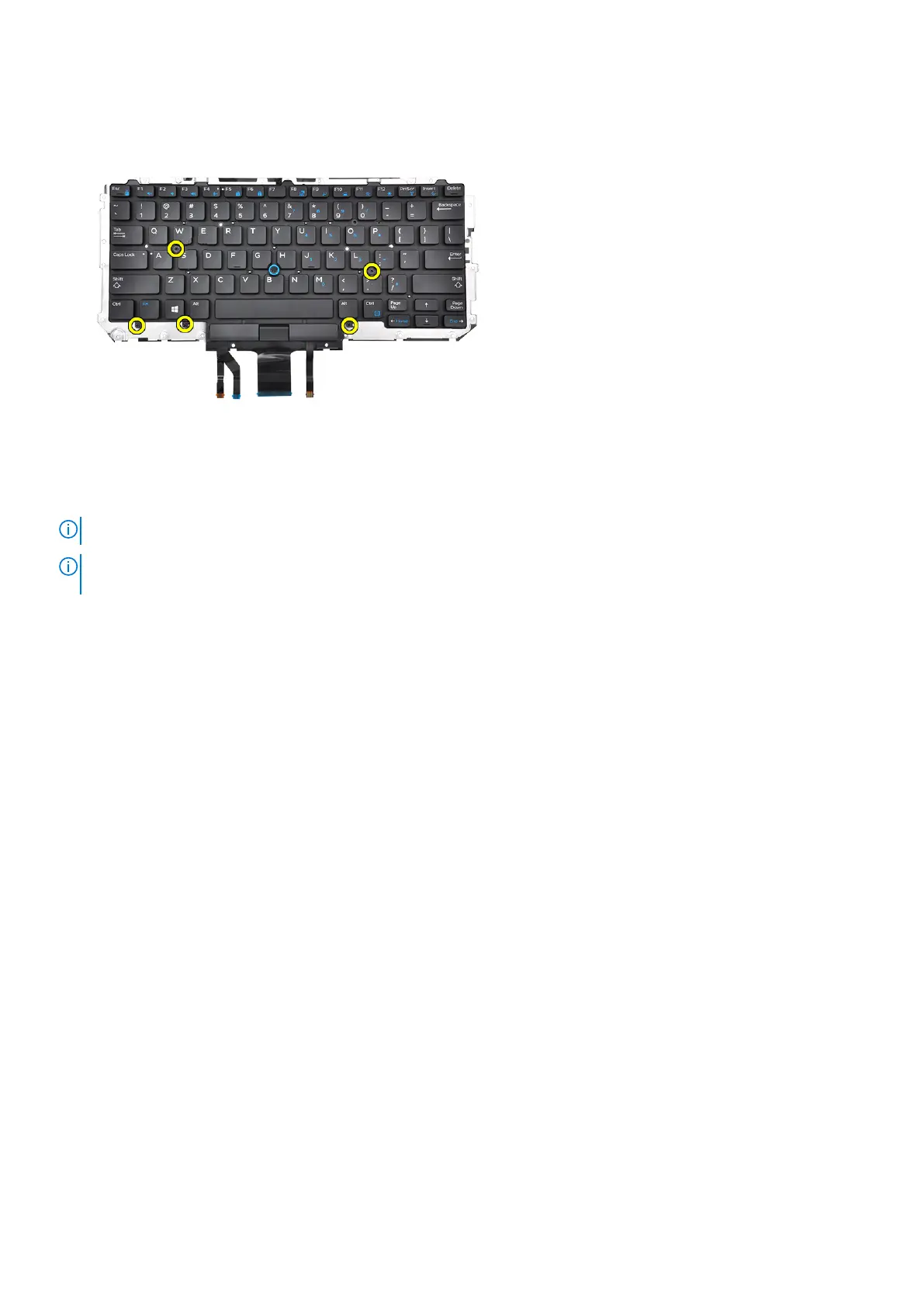

2. Tighten the five M2.0 x 2.0 screws to secure the keyboard to the keyboard tray.
3. Install the keyboard assembly.
Installing keyboard assembly
NOTE: The keyboard and the keyboard tray together are called the keyboard assembly.
NOTE: The keyboard has multiple snap points on the lattice side which must be pushed down firmly at the snap points in
order to secure and fit it to the replacement keyboard.
1. Align the keyboard assembly with the screw holders on the computer.
2. Tighten the M2.0 x 2.5 screws that secure the keyboard to the chassis.
3. Connect the keyboard cable, keyboard backlight cable, andtouchpad cable cable to the connectors on the touchpad buttons
board.
4. Install the:
a. system board
b. heat sink
c. WLAN card
d. WWAN card
e. SSD card
f. memory module
g. battery
h. base cover
5. Follow the procedure in After working inside your computer.
Palm rest
Replacing palm rest
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. battery
c. memory module
d. PCIe SSD
e. WLAN card
f. WWAN card
g. power connector port
48
Disassembly and reassembly
