Dell Latitude 9430 2-in-1 User Manual

Removing and installing components
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
Recommended tools
The procedures in this document may require the following tools:
● Phillips screwdriver #0
● Phillips screwdriver #1
● Plastic scribe
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and
then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.

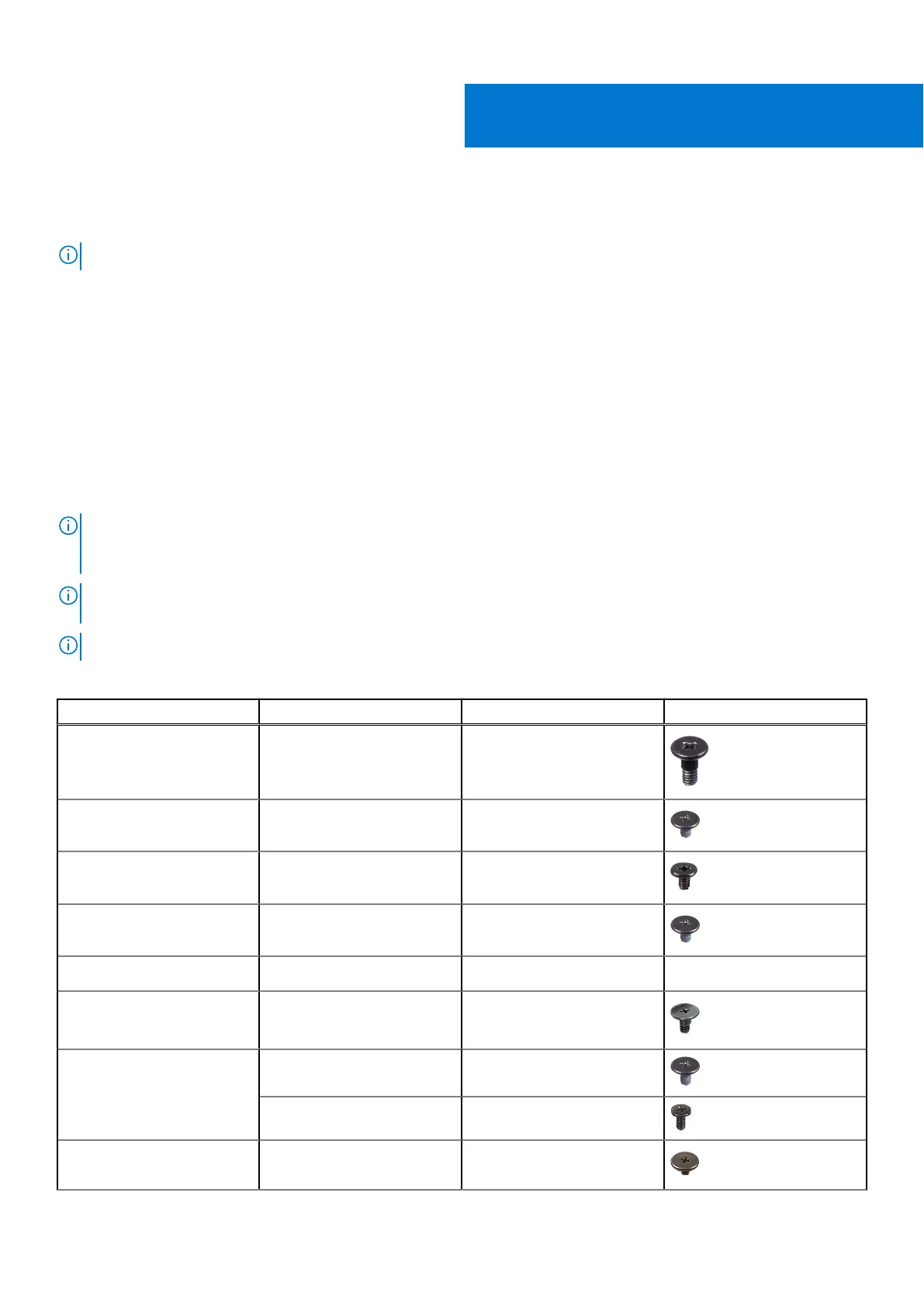

Table 1. Screw list
Component Screw type Quantity Image
Base cover Captive screws 8
Solid-state drive M1.6x2.5 1
WWAN card Captive screw - (M2x3) 1
System fan M1.6x2.5 2
Heat sink Captive screws 3
N/A
Display assembly M2.5x3 6
Battery M1.6x3 1
M2x4 4
Left speaker M1.6x1.8 1
2
10 Removing and installing components

Dell Latitude 9430 2-in-1 Specifications

General

Processor	12th Gen Intel Core i5/i7
RAM	Up to 32GB LPDDR5
Graphics	Intel Iris Xe Graphics
Operating System	Windows 11 Pro
Display	14 inch, FHD+ (1920 x 1200), Touchscreen
Storage	Up to 1TB PCIe NVMe SSD
Battery	60 Wh
Weight	Starting at 3.2 lbs
Ports	2 x Thunderbolt 4, 1 x HDMI 2.0
Wireless	Wi-Fi 6E, Bluetooth 5.2
Camera	FHD IR Camera
Audio	Stereo speakers
Security	Fingerprint Reader, IR Camera for Windows Hello
