4. Install the SD card.
5. Follow the procedure in After working inside your computer.
Speakers
Removing the left speaker
Prerequisites
1. Follow the procedure in Before working inside your computer.
NOTE: Ensure that your computer is in Service Mode. For more information see, step 6 in Before working inside your
computer.
2. Remove the SD card.
3. Remove the SIM card tray.
4. Remove the base cover.
5. Remove the WWAN card.
6. Remove the battery.
About this task

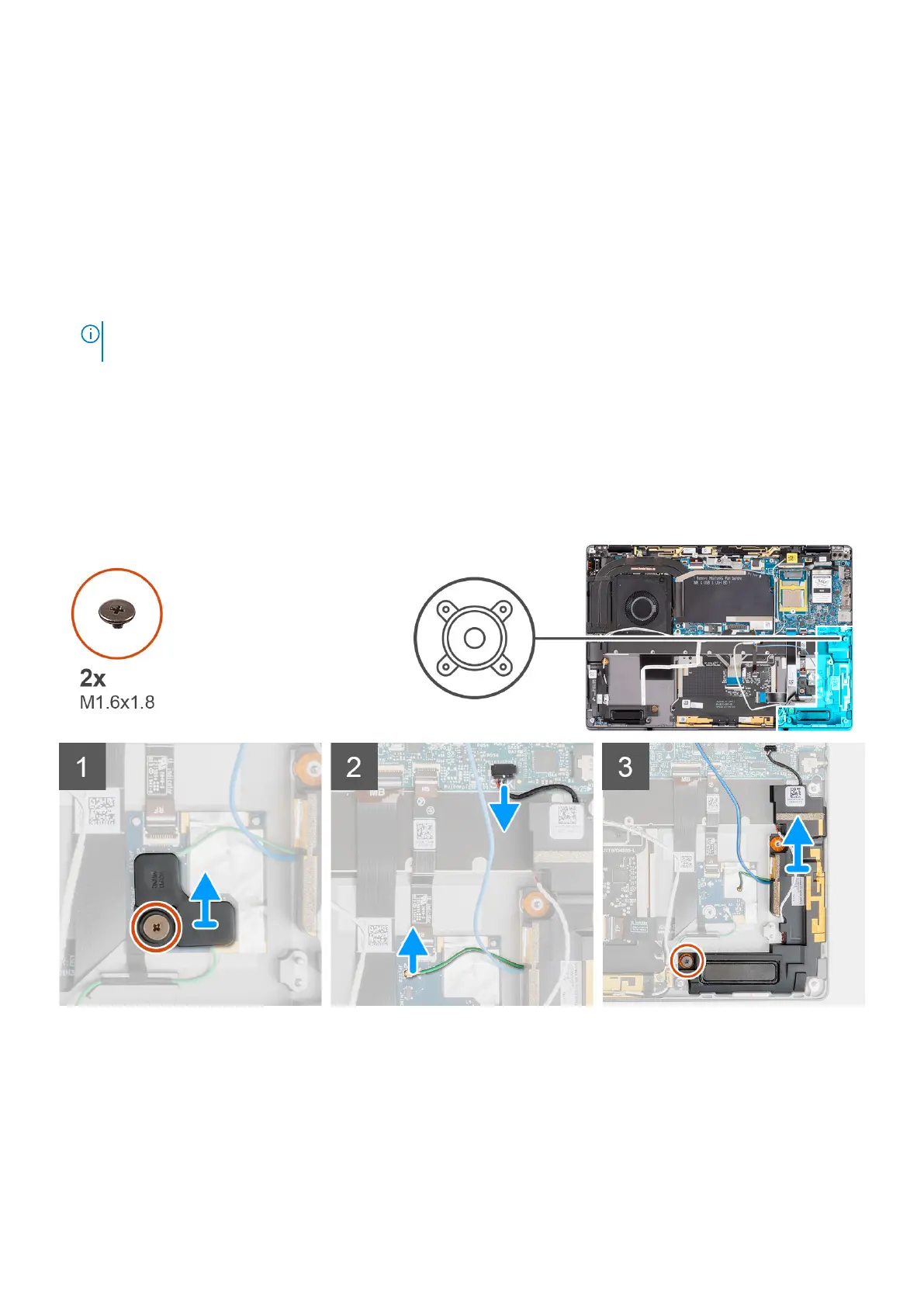

The following images indicate the location of the speaker and provide a visual representation of the removal procedure.
Steps
1. Remove the single (M1.6x1.8) screw securing the Proximity sensor bracket to the plam-rest assembly.
2. Disconnect the Proximity sensor cable for the left speaker's WWAN antenna module from the RF board.
3. Disconnect the left speaker cable from connector on the system board, and unroute the speaker cable from the routing
guides.
4. Remove the single (M1.6x1.8) screw that secure the left speaker, and lift the left speaker off the system.
Removing and installing components
43

Dell Latitude 9430 2-in-1 Specifications

General

Processor	12th Gen Intel Core i5/i7
RAM	Up to 32GB LPDDR5
Graphics	Intel Iris Xe Graphics
Operating System	Windows 11 Pro
Display	14 inch, FHD+ (1920 x 1200), Touchscreen
Storage	Up to 1TB PCIe NVMe SSD
Battery	60 Wh
Weight	Starting at 3.2 lbs
Ports	2 x Thunderbolt 4, 1 x HDMI 2.0
Wireless	Wi-Fi 6E, Bluetooth 5.2
Camera	FHD IR Camera
Audio	Stereo speakers
Security	Fingerprint Reader, IR Camera for Windows Hello
