Dell Latitude 9430 2-in-1 - Major Components of Latitude 9430

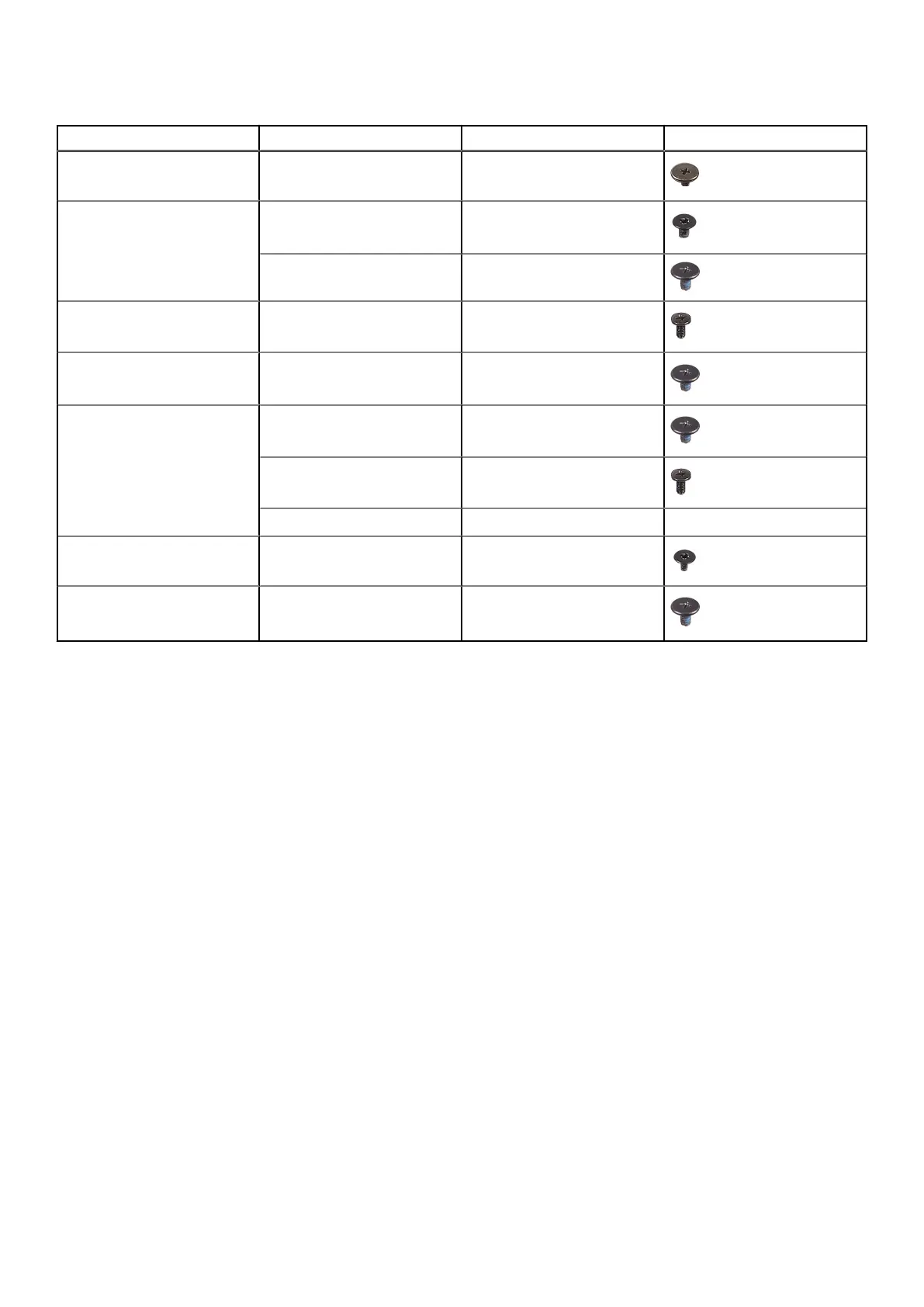

Table 1. Screw list (continued)
Component Screw type Quantity Image
Right speaker M1.6x1.8 1
WLAN antenna module M1.6x1.8 1
M1.6x3 2
I/O daughter board M2x4 1
Power button with fingerprint
reader assembly
M1.6x2 3
System board M1.6x2.5 4
M2x4 3
Captive screw 1 N/A
USH daughter board M1.2x2.5 2
WWAN main antenna module M1.6x3 4
Major components of Latitude 9430
The following image shows the major components of Latitude 9430.
