Steps
1. Align and place the base cover on the palm-rest assembly, and snap the base cover into place.

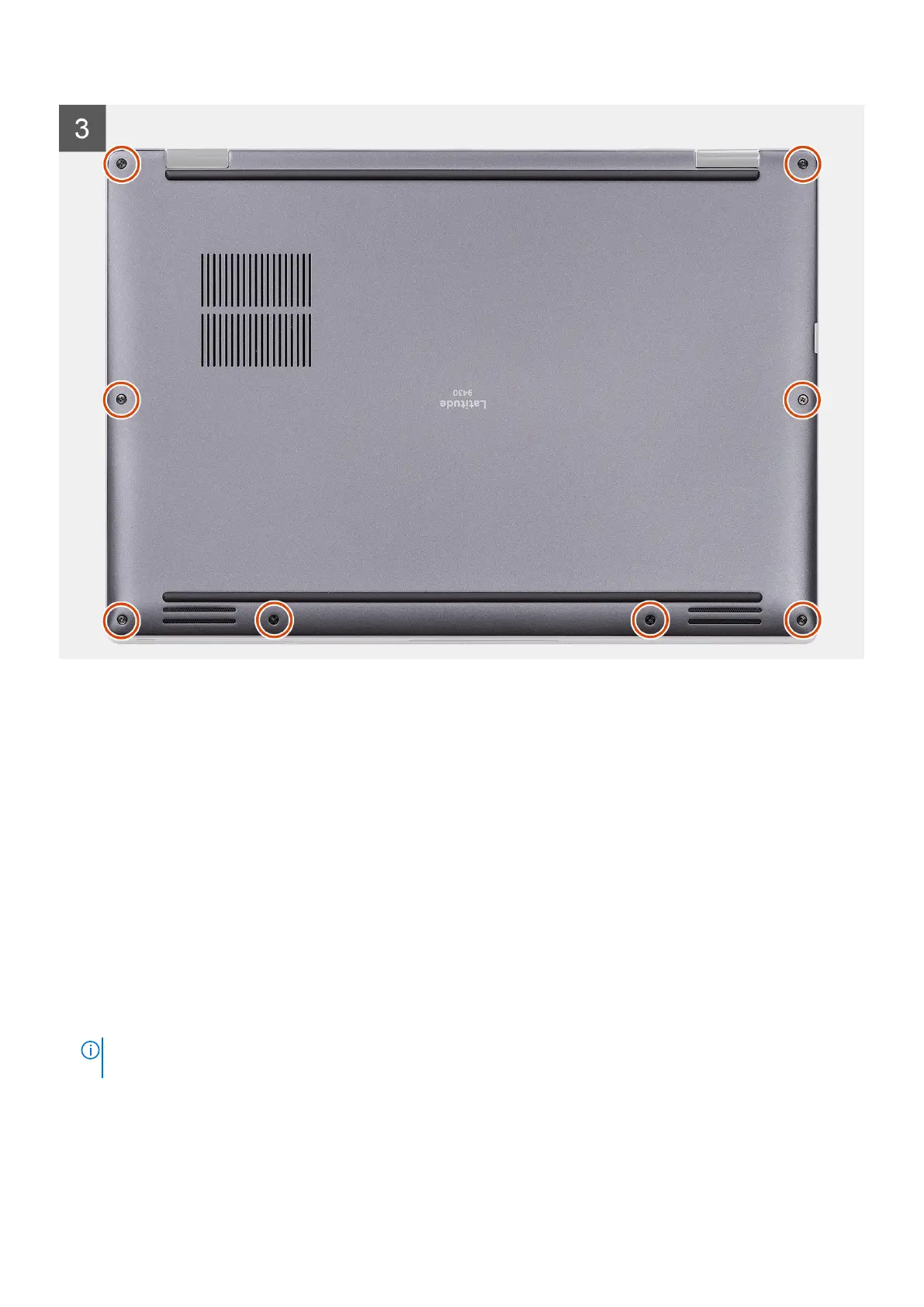

2. Tighten the eight captive screws to secure the base cover to the system.
Next steps
1. Install the SIM card tray.
2. Install the SD card.
3. Follow the procedure in After working inside your computer.
Solid-state drive
Removing the solid-state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
NOTE:
Ensure that your computer is in Service Mode. For more information see, step 6 in Before working inside your
computer.
2. Remove the SD card.
3. Remove the SIM card tray.
4. Remove the base cover.
Removing and installing components
21
