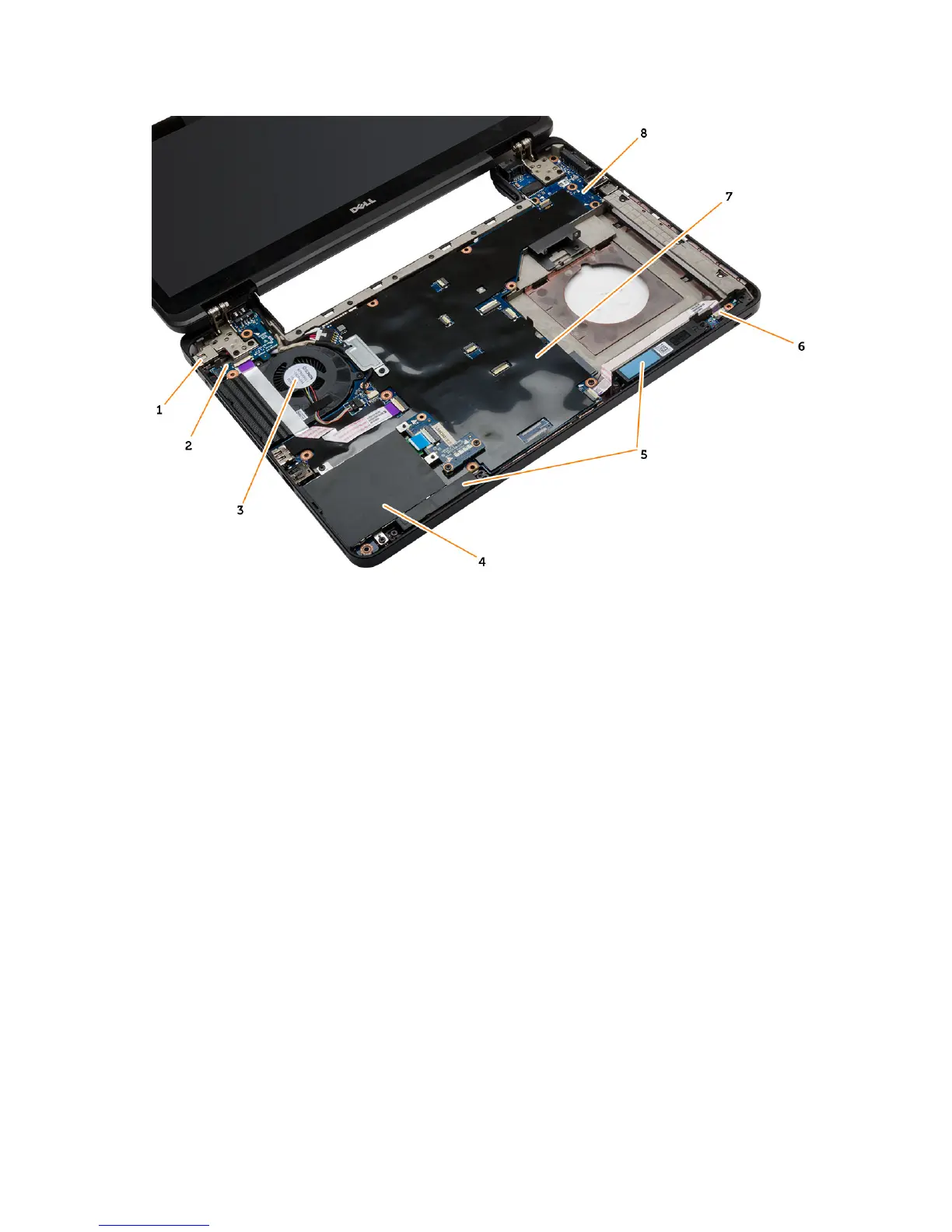

Figure 2. Inside view — Front
1. power connector 2. I/O board (left)
3. system fan 4. ExpressCard cage
5. speakers 6. status-light board
7. system board 8. I/O board (right)
Removing the Battery
1. Follow the procedures in Before Working Inside Your Computer.
2. Perform the following steps:
a. Slide the battery release latches into the unlock position.
b. Push and remove the battery from the computer.
10
