Dell Latitude E7440 - Installing the Keyboard

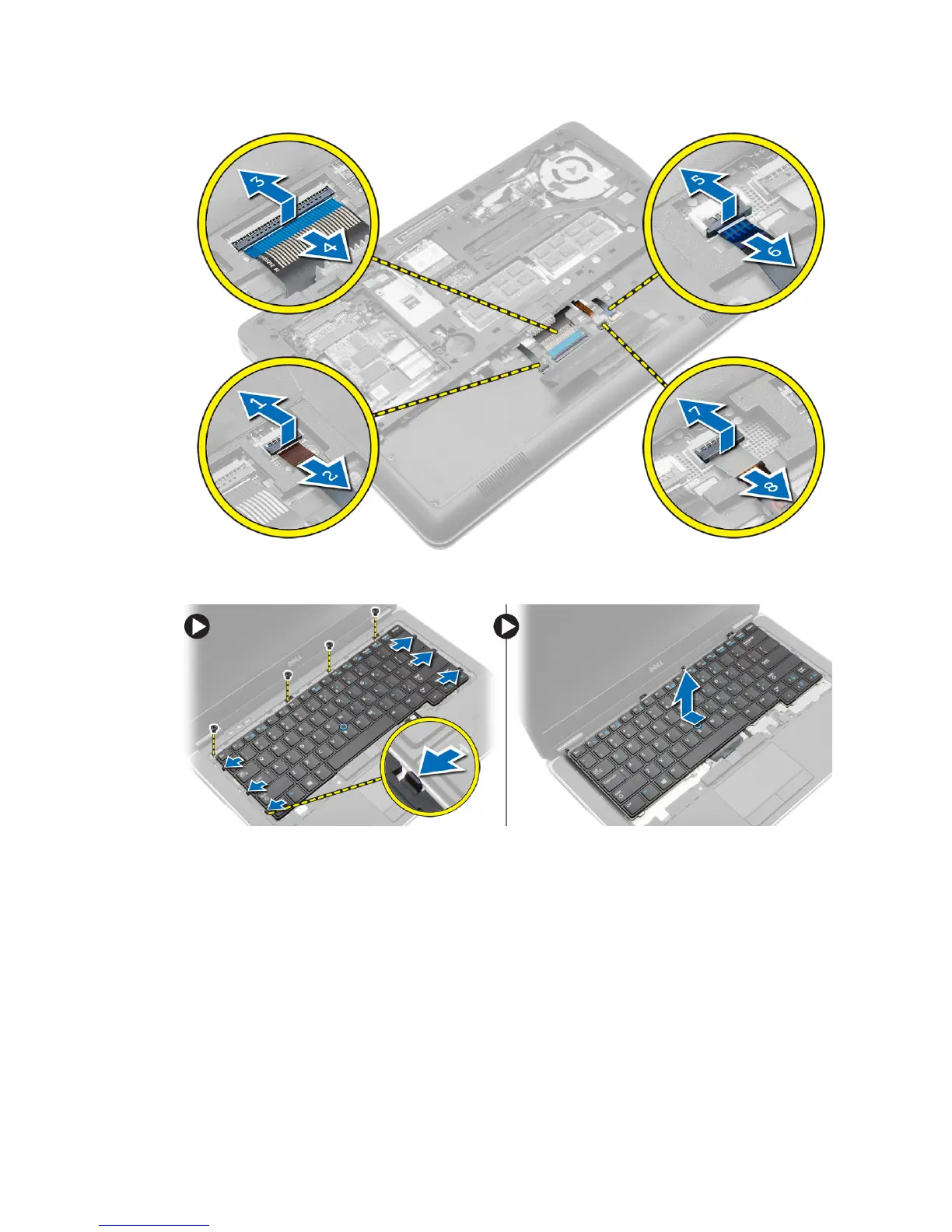

5. Flip the computer and remove the screws that secure the keyboard to the computer. Lift the keyboard from the
computer.
Installing the Keyboard
1. Connect the keyboard cable and secure it to the keyboard using the tape.
2. Connect the keyboard cable to the system board.
3. Slide the keyboard into its compartment and ensure that it clicks into place.
4. Tighten the screws to secure the keyboard on the palmrest.
5. Flip the computer and tighten the screws to secure the keyboard.
6. Install:
a) keyboard trim
b) base cover
