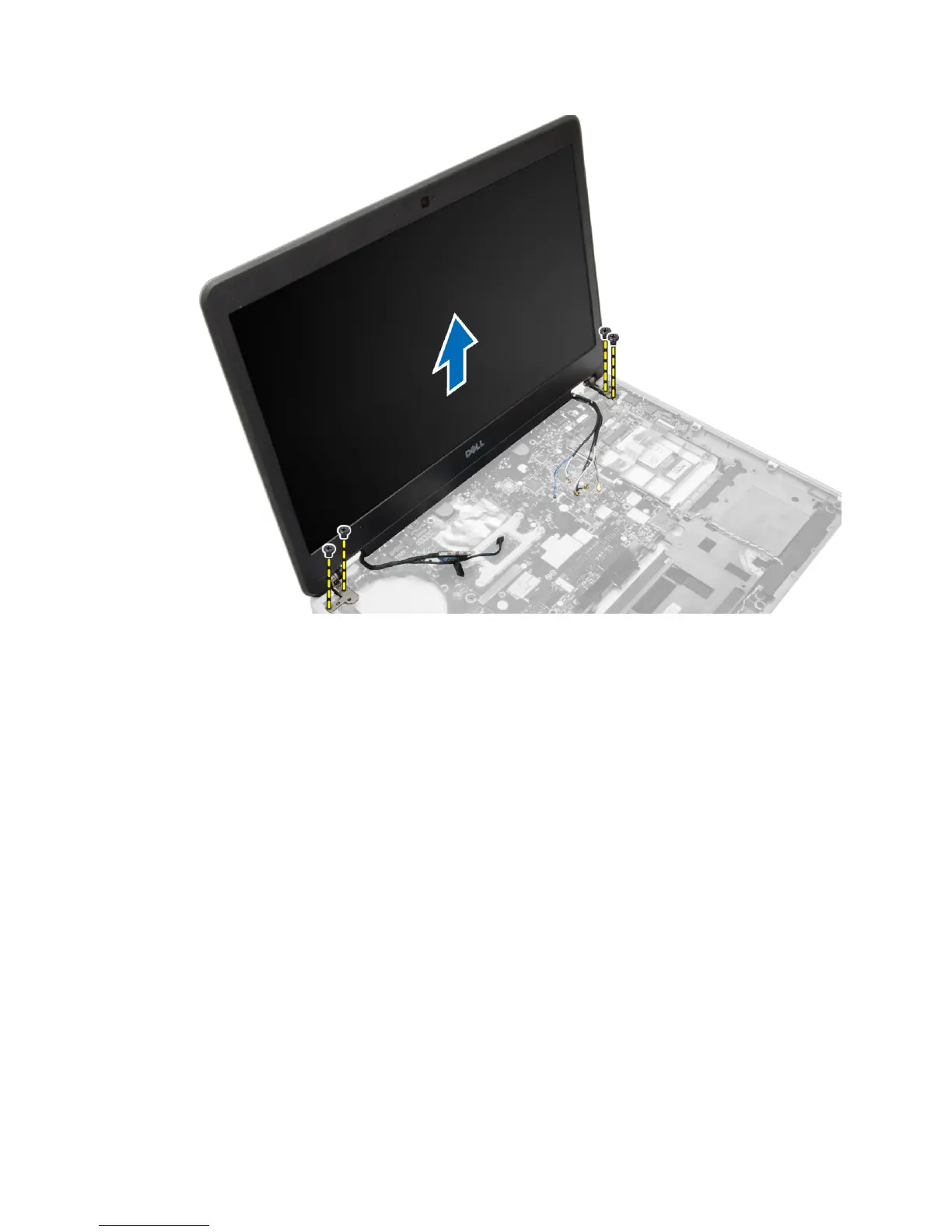

Installing the Display Assembly
1. Insert the LVDS and wireless antenna cables through the holes on the base chassis and connect them.
2. Place the display assembly onto the computer.
3. Tighten the screws on both sides to secure the display assembly.
4. Route the antenna and the LVDS cables through the routing channel.
5. Connect the LVDS and camera cable to the computer.
6. Connect the antenna cables to the wireless solution.
7. Install:
a) palmrest assembly
b) keyboard
c) base cover
d) SD card
e) battery
8. Follow the procedures in
After Working Inside Your Computer
.
Removing the System Fan
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove:
32
