c) battery
7. Follow the procedures in
After Working Inside Your Computer
.
Removing the WLAN Card
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove:
a) battery
b) base cover

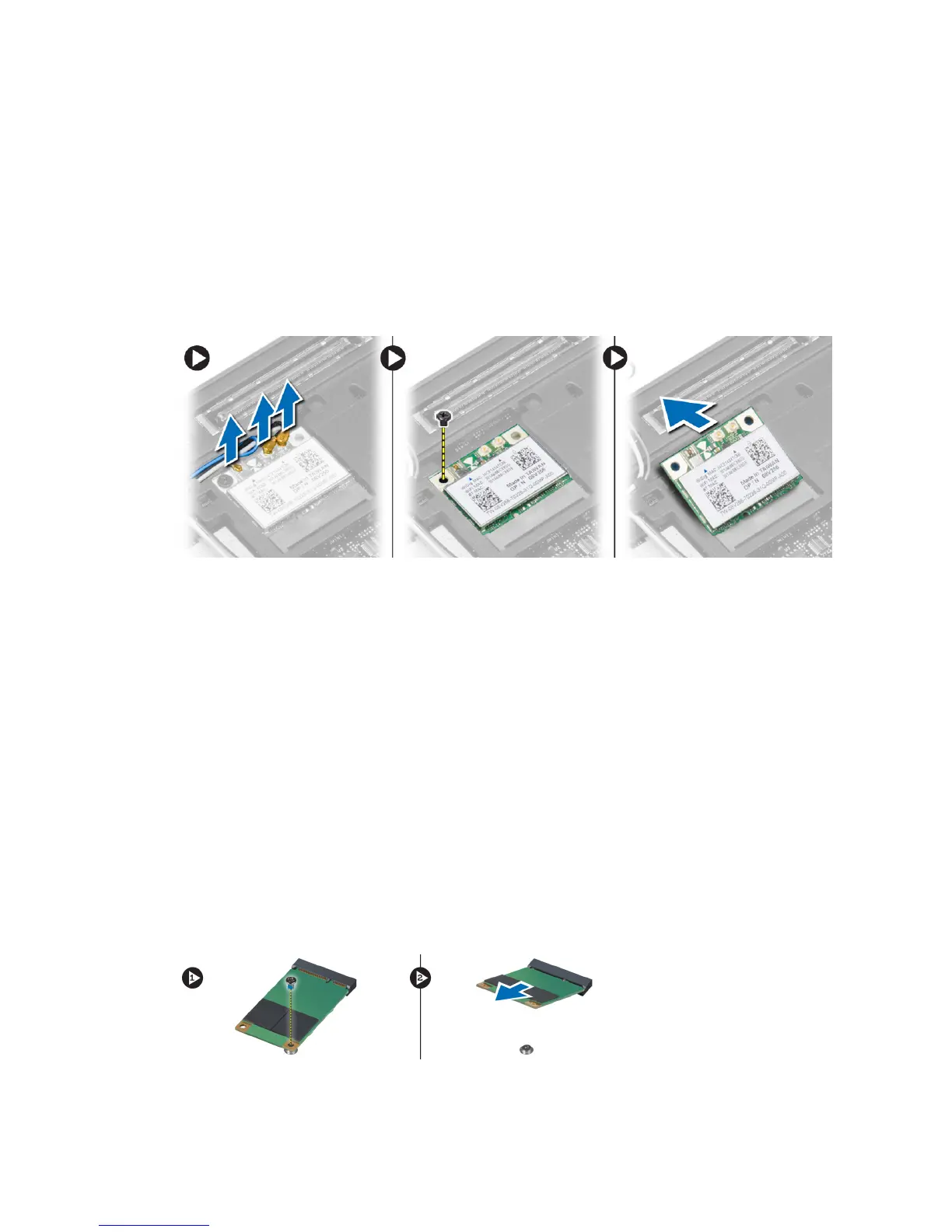

3. Disconnect the antenna cables from the WLAN card and remove the screw that secures the WLAN card to the
computer. Remove the WLAN card from the computer.
Installing the WLAN Card
1. Insert the WLAN card into its connector at a 45–degree angle into its slot.
2. Tighten the screw to secure the WLAN card to the computer.
3. Connect the antenna cables to their respective connectors marked on the WLAN card.
4. Install:
a) base cover
b) battery
5. Follow the procedures in
After Working Inside Your Computer
.
Removing the mSATA SSD Card
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove:
a) battery
b) SD card
c) base cover
3. Remove the screw that secures the mSATA SSD card and remove the mSATA SSD card from the computer.
19
