Dell Latitude E7440 - Page 35

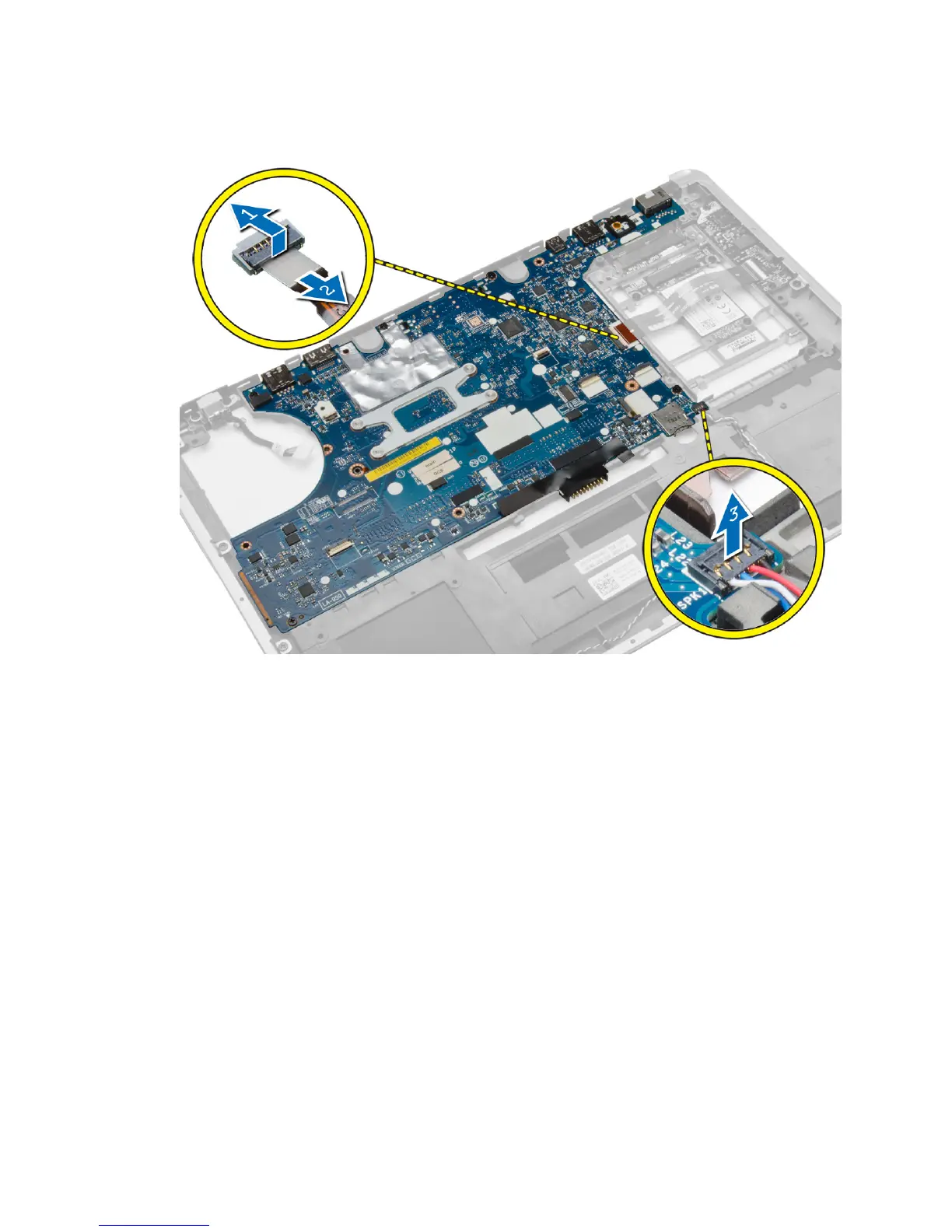

b) Disconnect the cable from the system board [2].
c) Disconnect the speaker cable from system board [3].
4. Remove the screws that secure the system board to the computer. Lift the left edge of system board partially to a
45-degree angle.
35
