Installing the intrusion switch

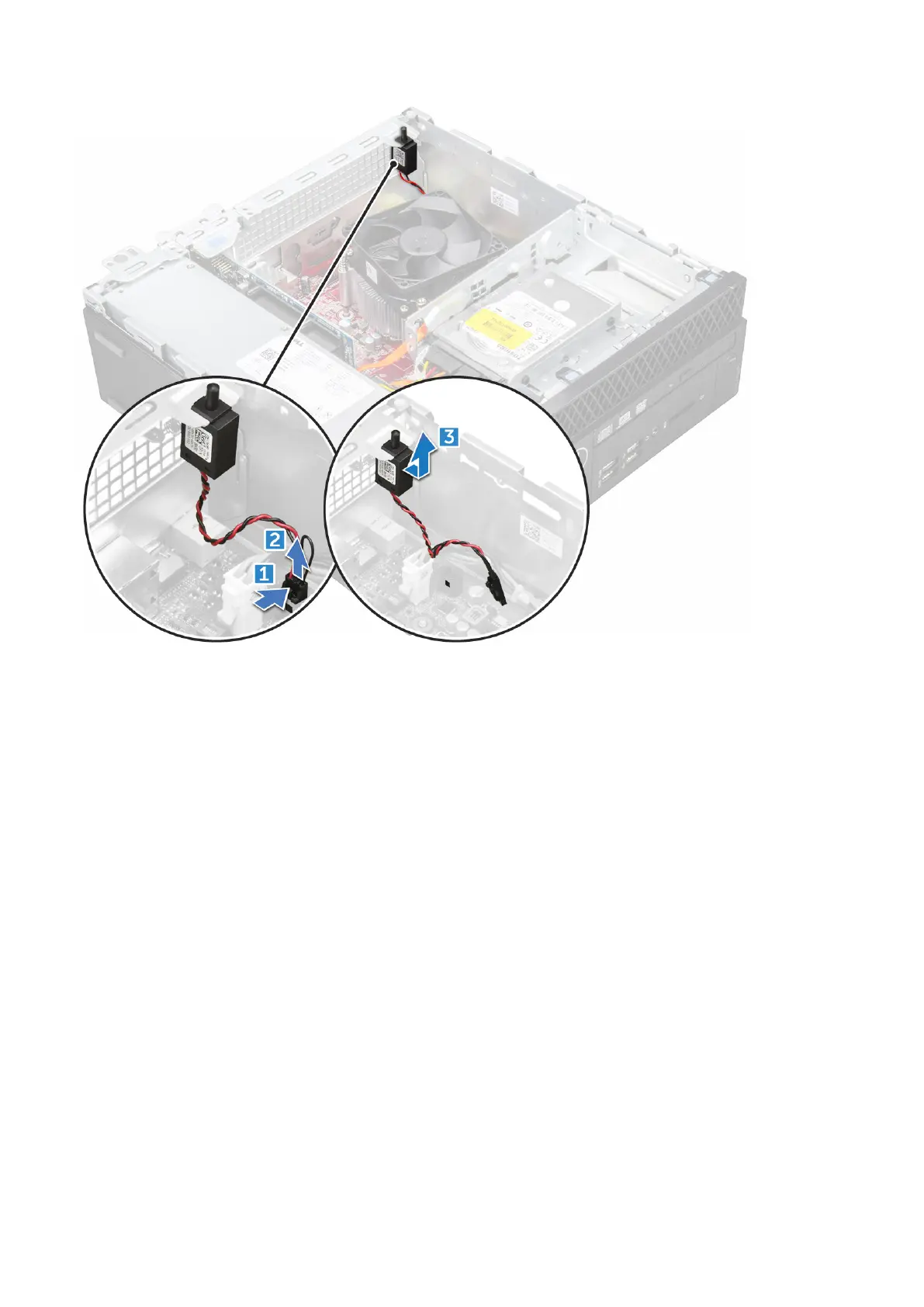

1. Insert the intrusion switch into the slot on the chassis.
2. Connect the intrusion switch cable to the system board.
3. Install the:
a. cover
4. Follow the procedure in After working inside your computer.
Hard drive and optical drive module
Removing the hard drive and optical drive module
1. Follow the procedure in Before working inside your computer.
2. Remove the cover.
3. Remove the bezel.
4. To release the hard drive and optical drive module:
a. Disconnect the data and power cables from the connectors on the hard drive assembly [1] [2].
b. Unroute the cables through the clip [3].
c. Slide the release tab to unlock the hard drive and optical module [4].
