Heat sink assembly
Removing heat sink assembly
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. cover
b. bezel
c. hard drive and optical drive module

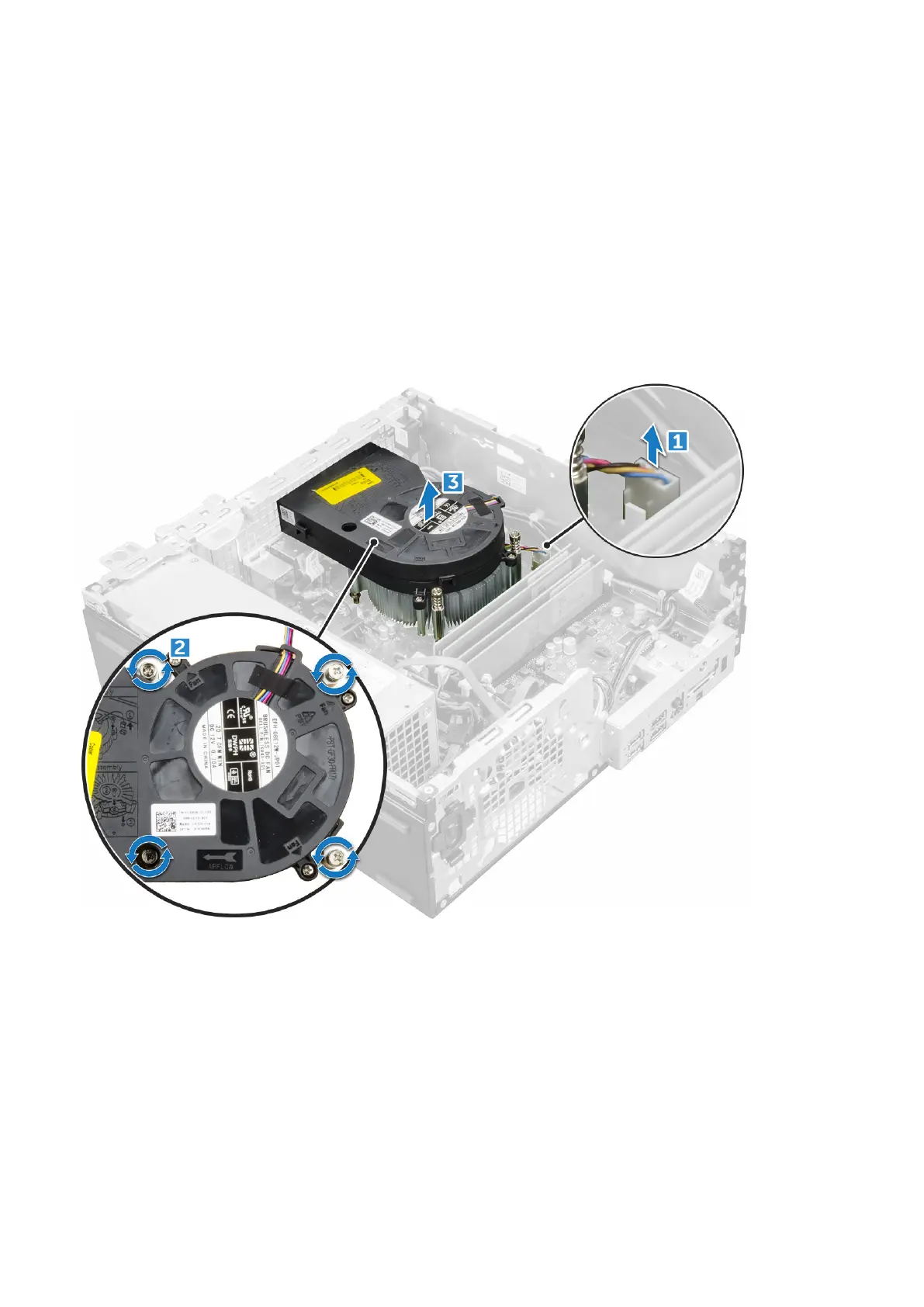

3. To remove the heat sink assembly:
a. Disconnect the heat sink assembly cable from the system board [1].
b. Loosen the captive screws that secure the heat sink assembly [2] and lift it away from the computer [3].
Installing the heat sink assembly
1. Place the heat sink assembly onto the processor.
2. Tighten the captive screws to secure the heat sink assembly to the system board.
3. Connect the heat sink assembly cable to the system board.
4. Install the:
a. hard drive and optical drive module
b. bezel
c. cover
5. Follow the procedure in After working inside your computer.
Removing and installing components
21
