Dell OptiPlex 3050 Small Form Factor User Manual

c. cover
7. Follow the procedure in After working inside your computer.
Memory module
Removing memory module
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. cover
b. bezel
c. Removing the hard drive and optical drive module

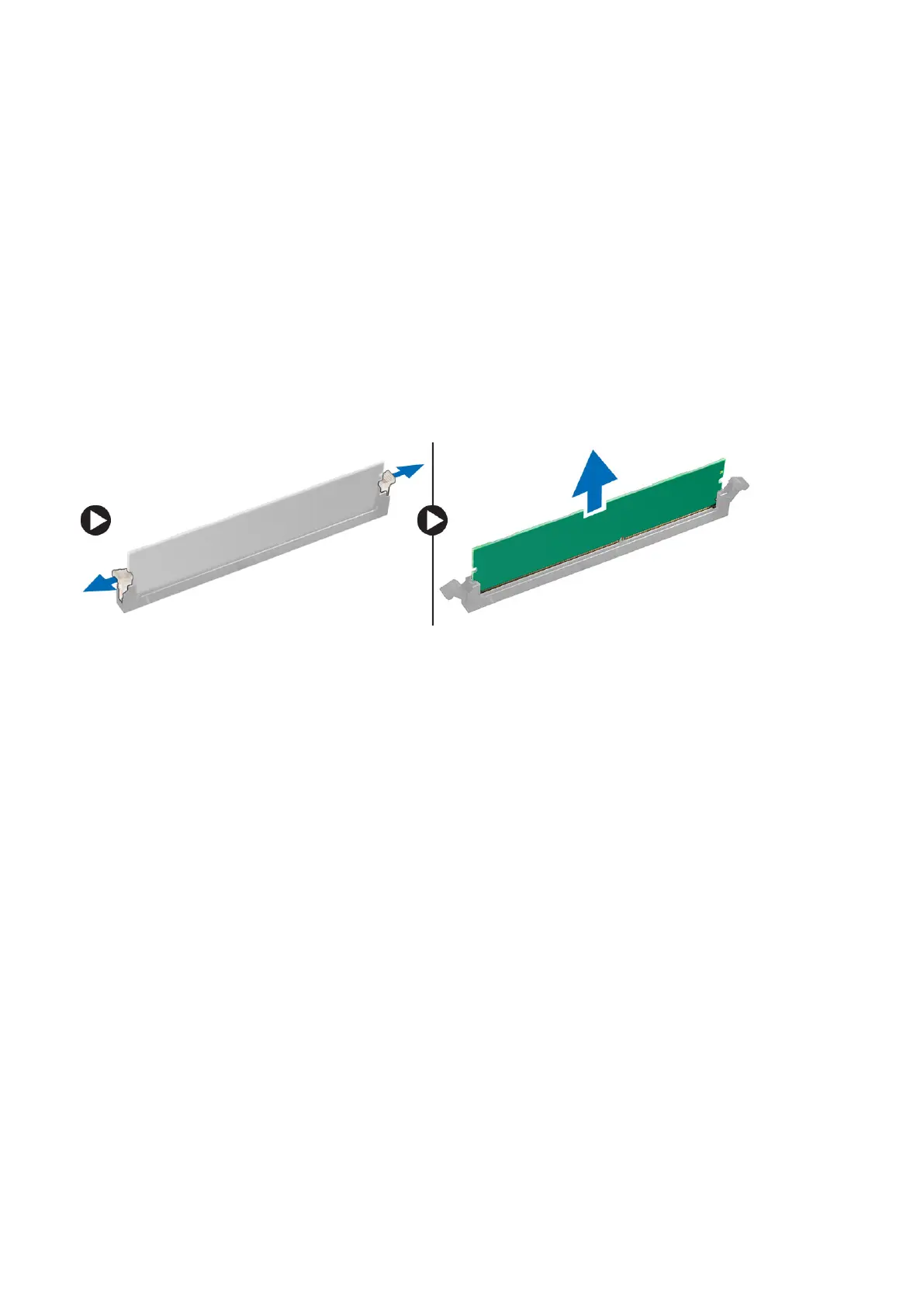

3. To remove the memory module:
a. Push the memory module retention tabs on both sides of the memory module.
b. Lift the memory module from the memory module connector on the system board.
Installing the memory module
1. Align the notch on the memory module with the tab on the memory module connector.
2. Insert the memory module into the memory module socket.
3. Press the memory module until the memory module retention tabs click into place.
4. Install the:
a. optical drive
b. 2.5–inch drive assembly
c. bezel
d. cover
5. Follow the procedure in After working inside your computer.
SD card reader
Removing the SD card reader
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. cover
b. bezel
c. hard drive and optical drive module
d. M.2 PCIe SSD
3. To remove the SD card reader:
a. Release the power supply unit cables from the retention clips on the SD card reader enclosure [1].
Removing and installing components
23
