Dell Optiplex 7070 Small Form Factor - Component Servicing Procedures; Chassis Components

Removing and installing components
Side cover
Removing the side cover
1 Follow the procedure in Before working inside your computer.
2 To remove the cover:

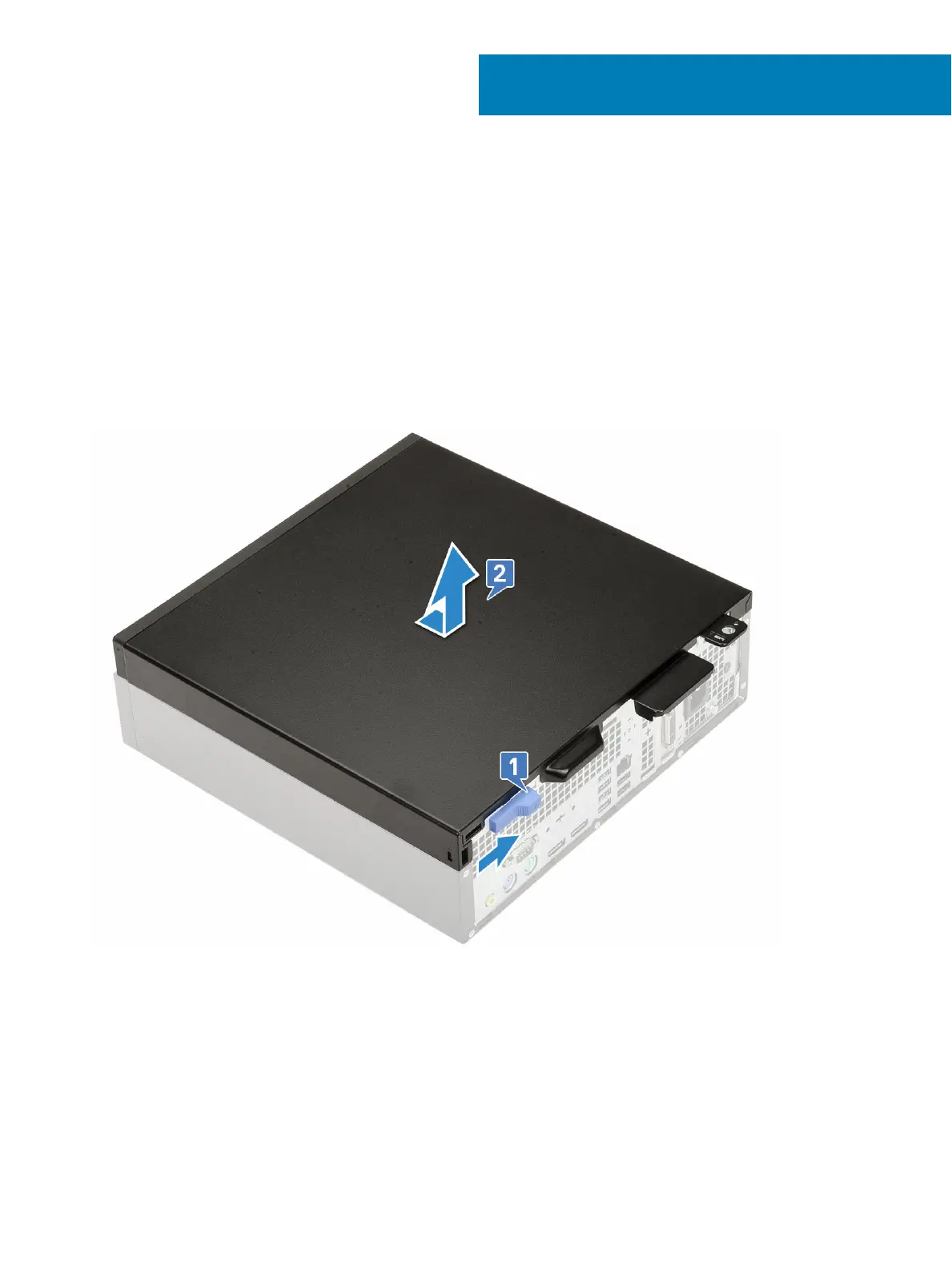

a Slide the release latch on the back side of your system until it gives a click sound to unlock the side cover [1].
b Slide and lift the side cover from the system [2].
Installing the side cover
1 Place the cover on the system and slide the cover until it clicks into place [1].
2 The release latch automatically locks the side cover to the system [2].
3
Removing and installing components 17
