Installing the hard drive assembly

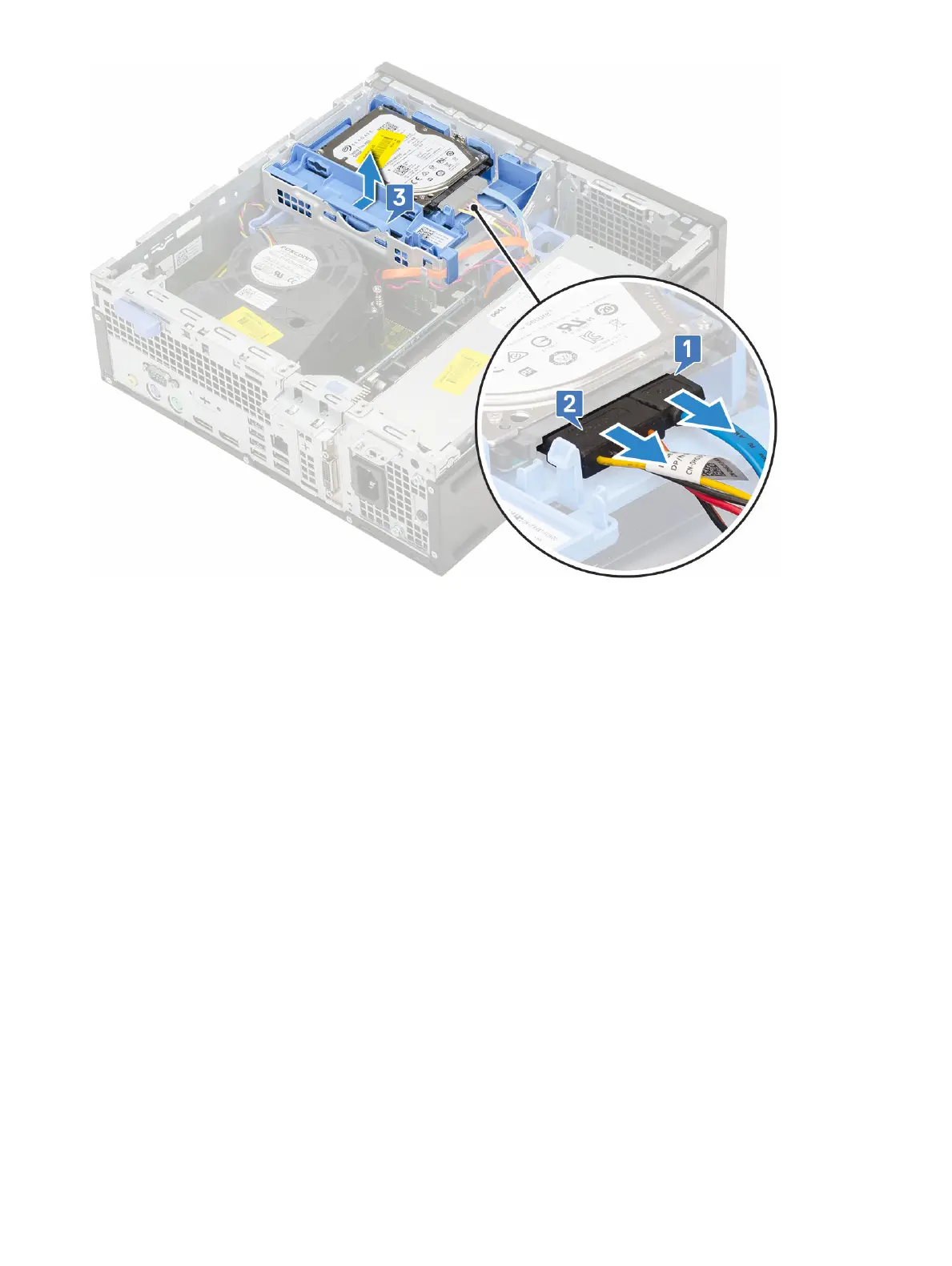

1 Align the tabs on the hard drive assembly with the slots on the chassis at 30 degree angle [1].
2 Press the hard drive assembly so that it gets secured to the hard drive and optical drive cage [2].
3 Connect the hard drive data cable and hard drive power cable to the connectors on the hard drive [3,4]
