Dell Optiplex 7070 Small Form Factor User Manual

7 Install the:
a HDD assembly
b Front bezel
c Side cover
8 Follow the procedure in After working inside your computer.
Optical drive
Removing the optical drive
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a Side cover
b Front bezel
3 To remove the optical drive:

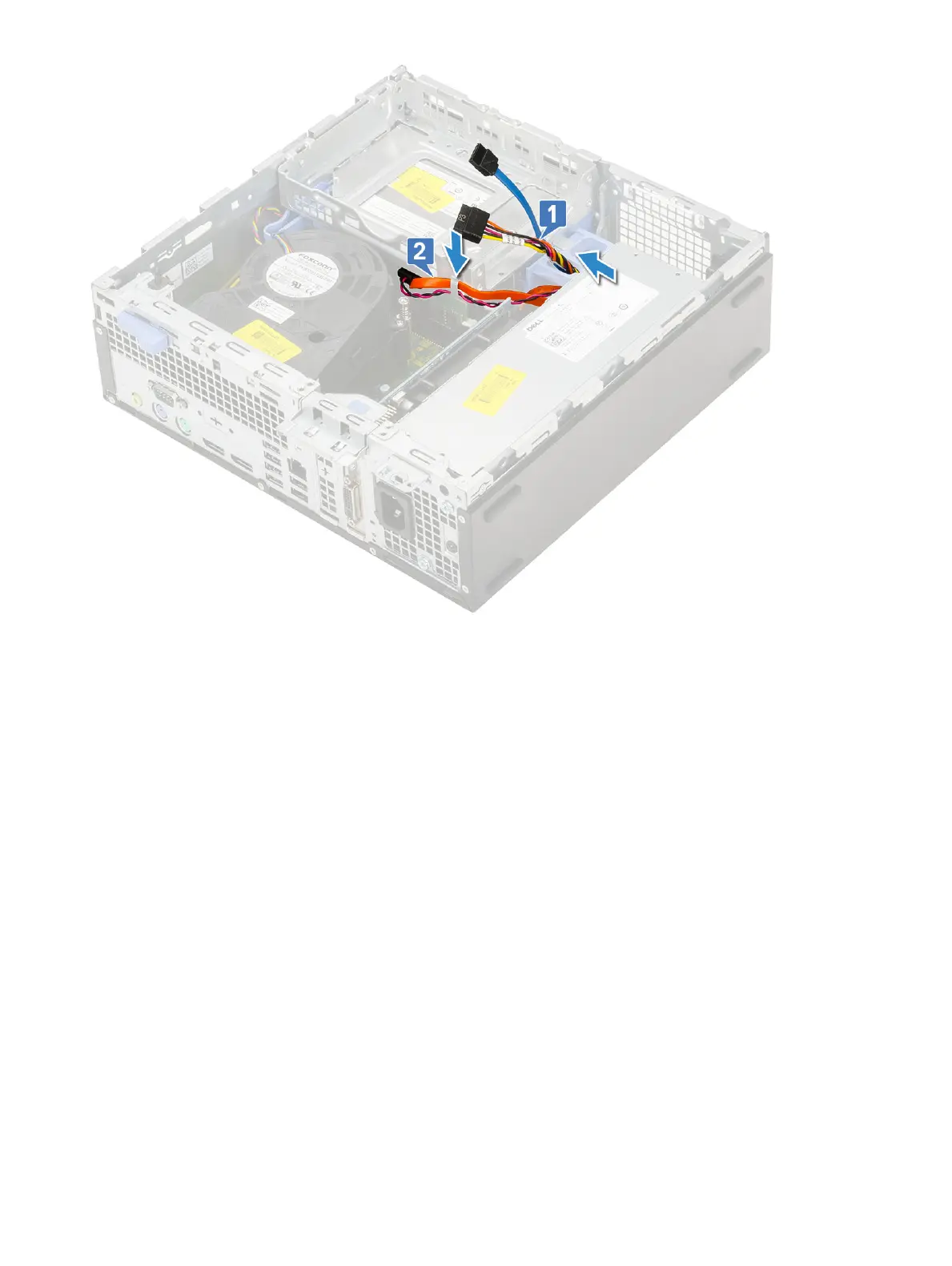

a Disconnect the hard drive data cable and power cable from the connectors on the hard drive [1, 2].
Removing and installing components
33
