4 Install the:
a Hard drive and optical drive module
b HDD assembly
c Front bezel
d Side cover
5 Follow the procedure in After working inside your computer.
Heatsink assembly
Removing heatsink assembly
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a Side cover
b Front bezel
c HDD assembly
d Hard drive and optical drive module

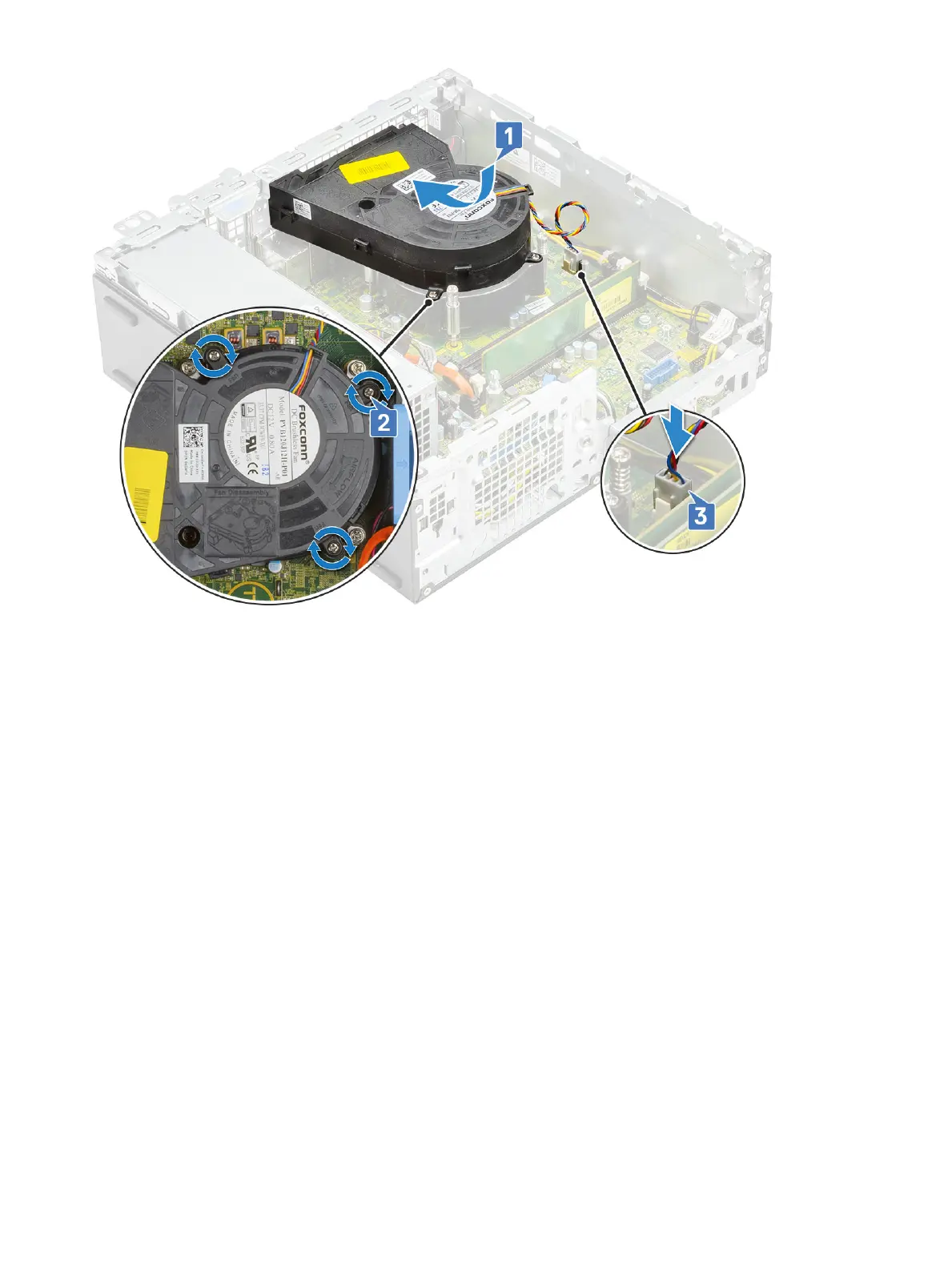

3 To remove the heatsink assembly:
a Disconnect the heatsink assembly fan cable from the connector on the system board [1].
b Loosen the 4 captive screws that secure the heatsink fan assembly [2] and lift it away from the system [3].
Removing and installing components
45
