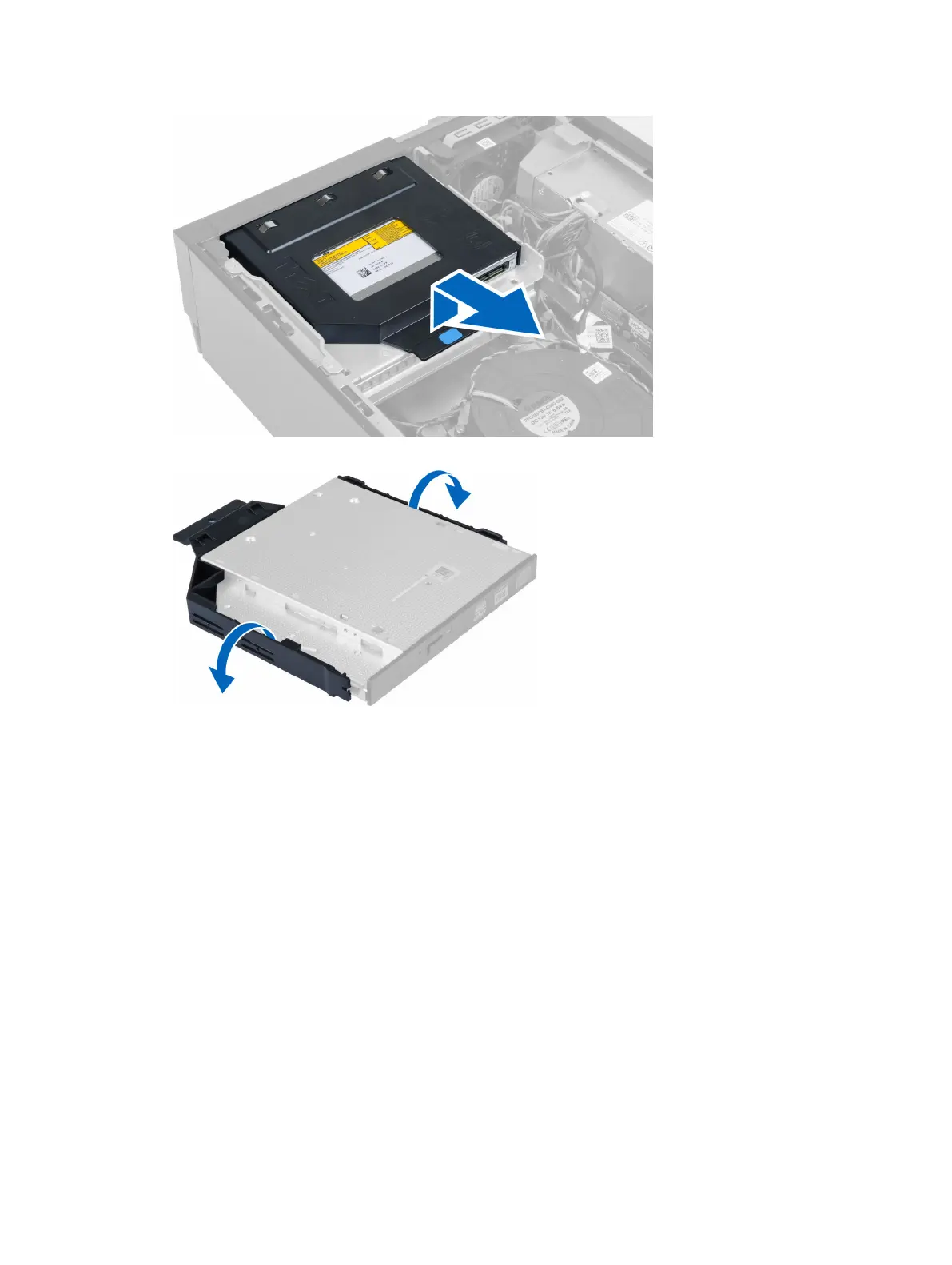

5. Pry the sides of the bracket to remove the optical drive.
Installing the Optical Drive
1. Insert the optical drive into the bracket.
2. Lift the blue tab and slide the optical drive outwards to insert it into the computer.
3. Connect the data cable and power cable to the optical drive.
4. Install the cover.
5. Follow the procedures in
After Working Inside Your Computer
.
Removing the Hard Drive
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove the cover.
3. Press the retention clips inwards and slide the hard-drive bracket out from the drive cage.
15
