Memory Module Guidelines
To ensure optimal performance of your computer, observe the following general guidelines when configuring your
system memory:
• Memory modules of different sizes can be mixed (for example, 2 GB and 4 GB). But, all populated channels must
have identical configurations.
• Memory modules must be installed beginning with the first socket.
NOTE: The memory sockets in your computer may be labeled differently depending on the hardware
configuration. For example, A1, A2 or 1,2,3.
• If the quad-rank memory modules are mixed with single or dual-rank modules, the quad-rank modules must be
installed in the sockets with the white release levers.
• If memory modules with different speeds are installed, they operate at the speed of the slowest installed memory
modules.
Removing the Memory
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove the:
a. cover
b. front bezel
c. drive cage

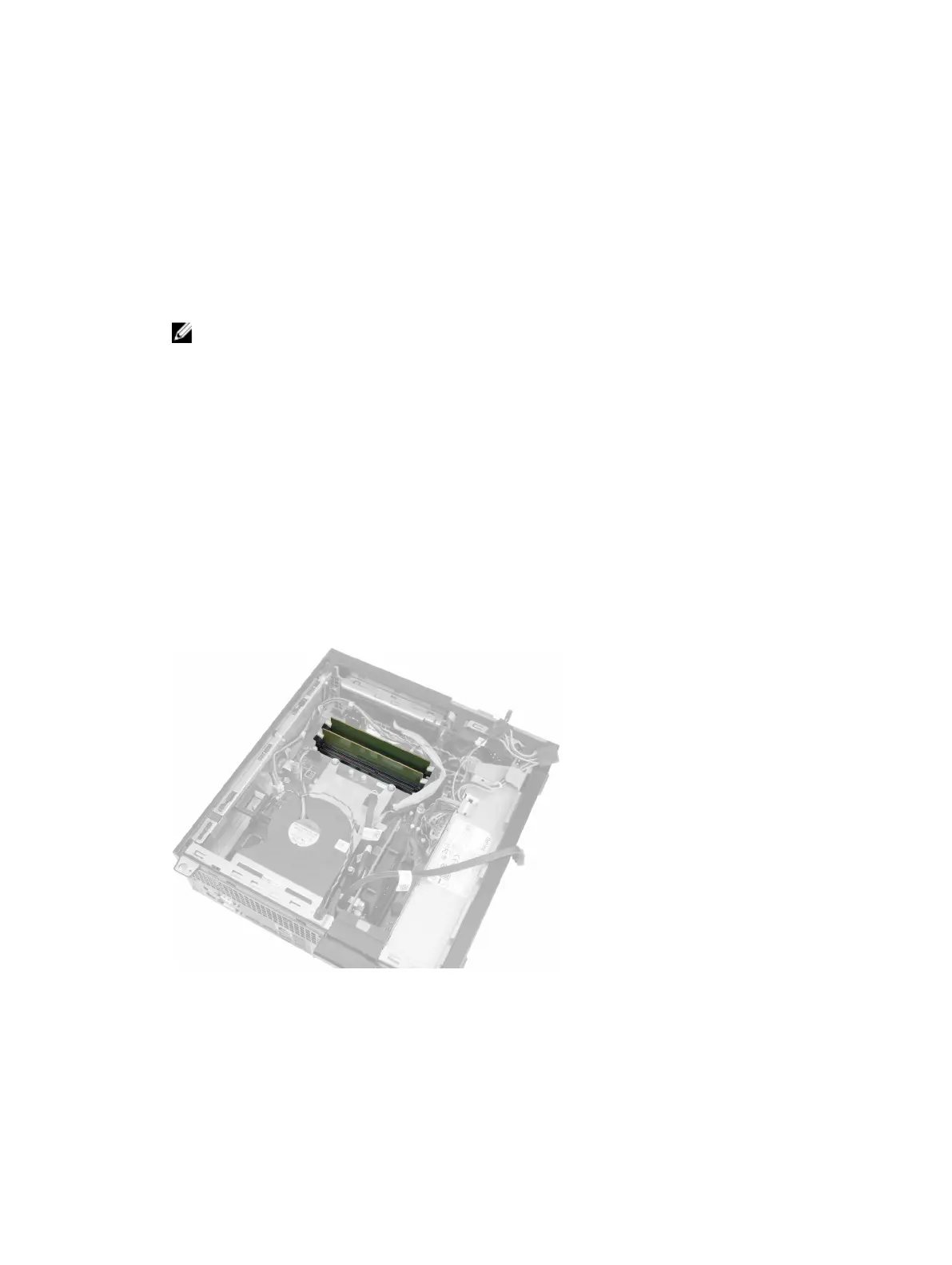

3. Release the memory-retention clips on each side of the memory modules.
4. Lift the memory modules out of the connectors on the system board.
20
