Dell OptiPlex 9010 Small Form Factor User Manual

3. Press the retention clips inwards and slide the hard-drive bracket into the drive cage.
4. Install the cover.
5. Follow the procedures in After Working Inside Your Computer .

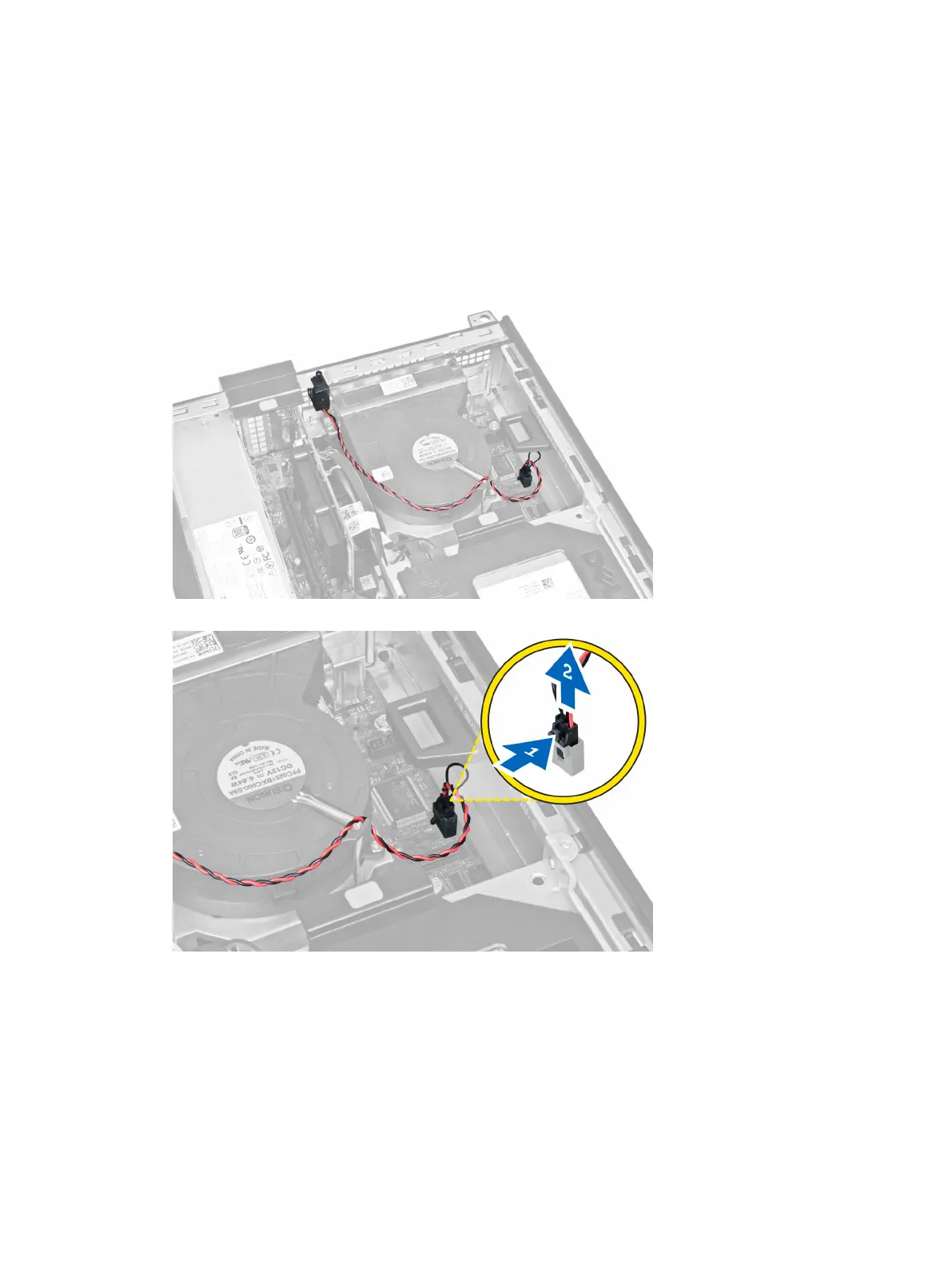

Removing the Intrusion Switch
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the cover.
3. Disconnect the intrusion-switch cable from the system board.
4. Slide the intrusion switch inwards and remove it from the system board.
17

Dell OptiPlex 9010 Small Form Factor Specifications

General

Brand	Dell
Model	OptiPlex 9010 Small Form Factor
Category	Desktop
Language	English
