Installing the Speaker

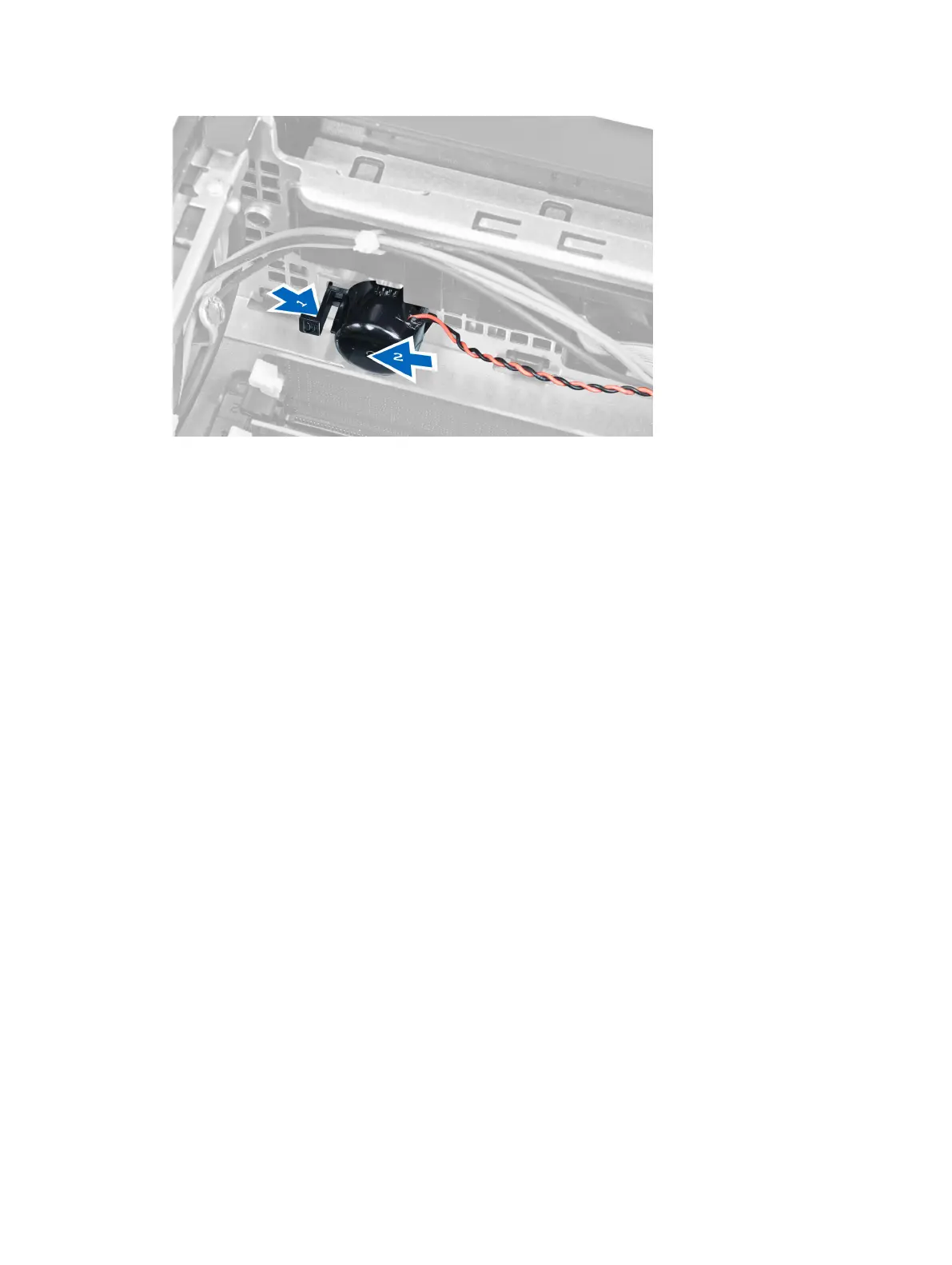

1. Place the speaker at the appropriate location on the chassis rear.
2. Press the speaker-securing tab and slide the speaker towards the left of the computer to secure it.
3. Connect the speaker cable to the system board.
4. Install the:
a. drive cage
b. front bezel
c. cover
5. Follow the procedures in
After Working Inside Your Computer
.
Removing the Power-Switch Cable
1. Follow the procedures in
Before Working Inside Your Computer.
2. Remove the:
a. cover
b. front bezel
c. drive cage
3. Disconnect the power-switch cable from the system board.
25
