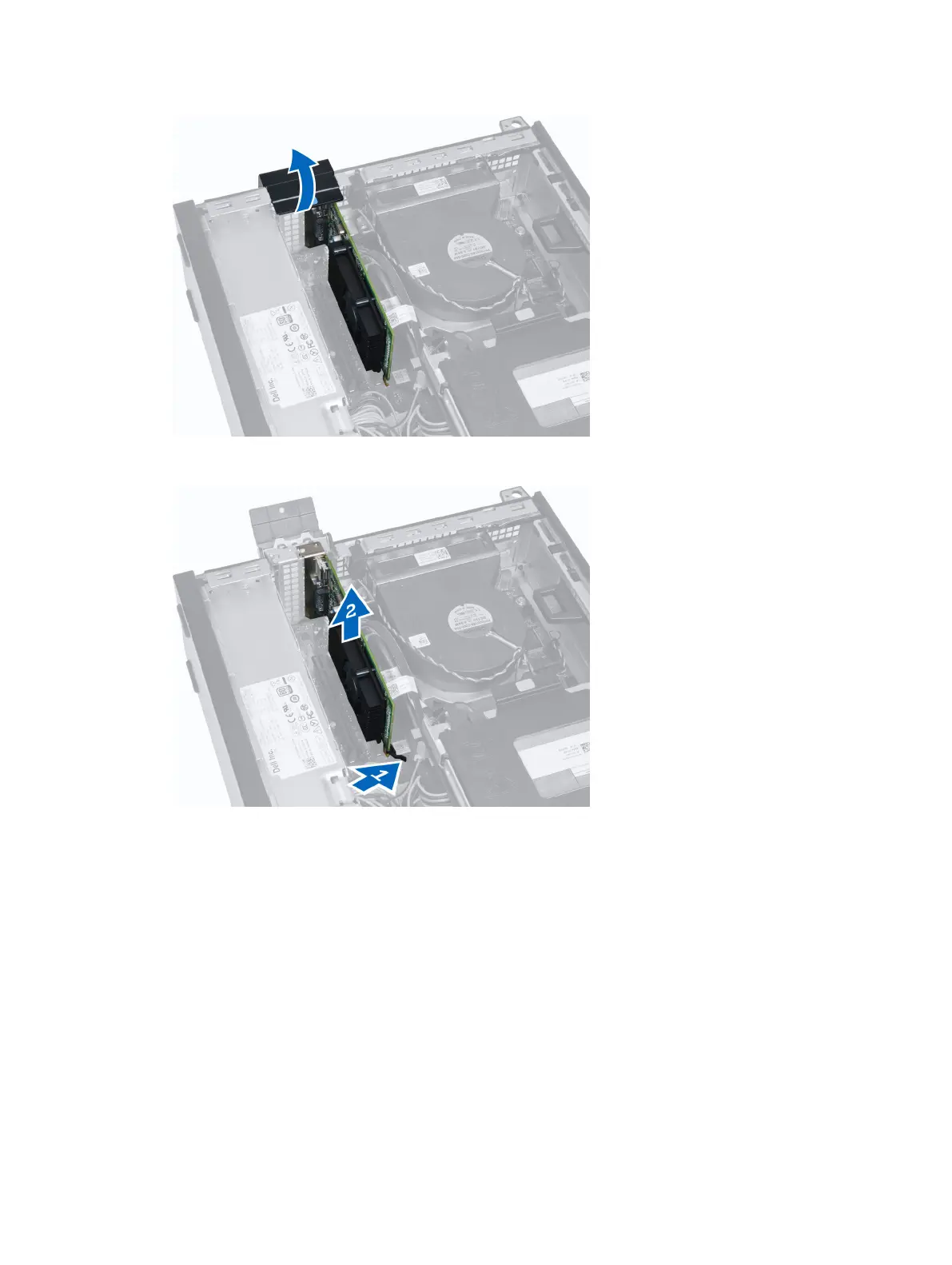

4. Pull the release lever away from the expansion card until you release the securing tab from the dent in the card.
Then, ease the card up and out of its connector and remove it from the computer.
Installing The Expansion Card
1. Insert the expansion card into the connector on the system board and press down to secure it in place.
2. Install the:
a. front bezel
b. cover
3. Follow the procedures in
After Working Inside Your Computer
.
19
