Steps

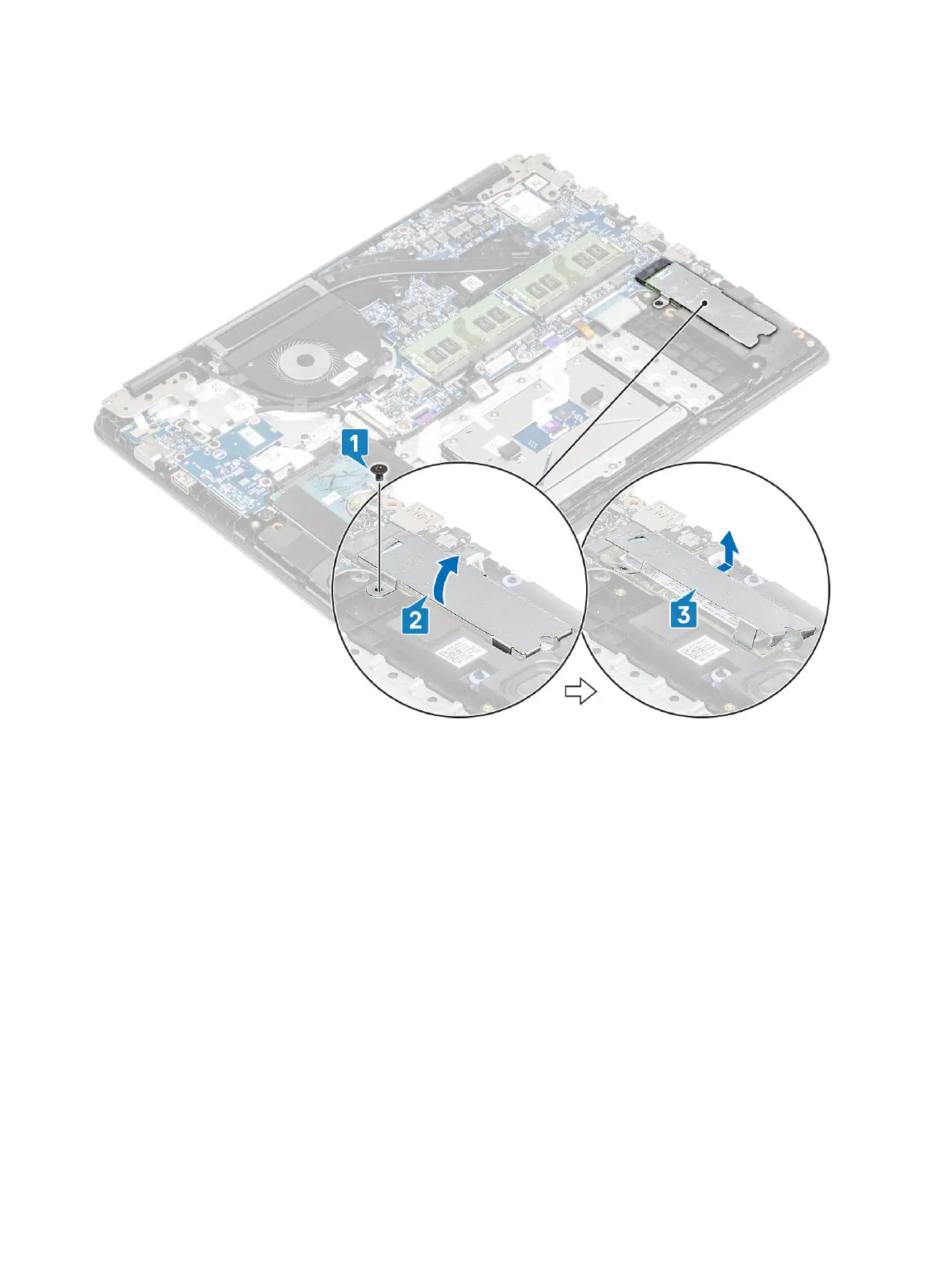

1 Remove the single (M2x3) screw that secures the thermal plate to the palmrest and keyboard assembly [1].
2 Turn the thermal plate over [2].
3 Slide and remove the thermal plate from the solid-state drive/Intel Optane card slot [3].
4 Remove the single (M2x2) screw that secures the solid-state drive/Intel Optane card to the palmrest and keyboard assembly [1].
5 Slide and lift the solid-state drive/Intel Optane card o the palmrest and keyboard assembly [2].
