Dell P111G - Page 70

Installing the power button board
Steps

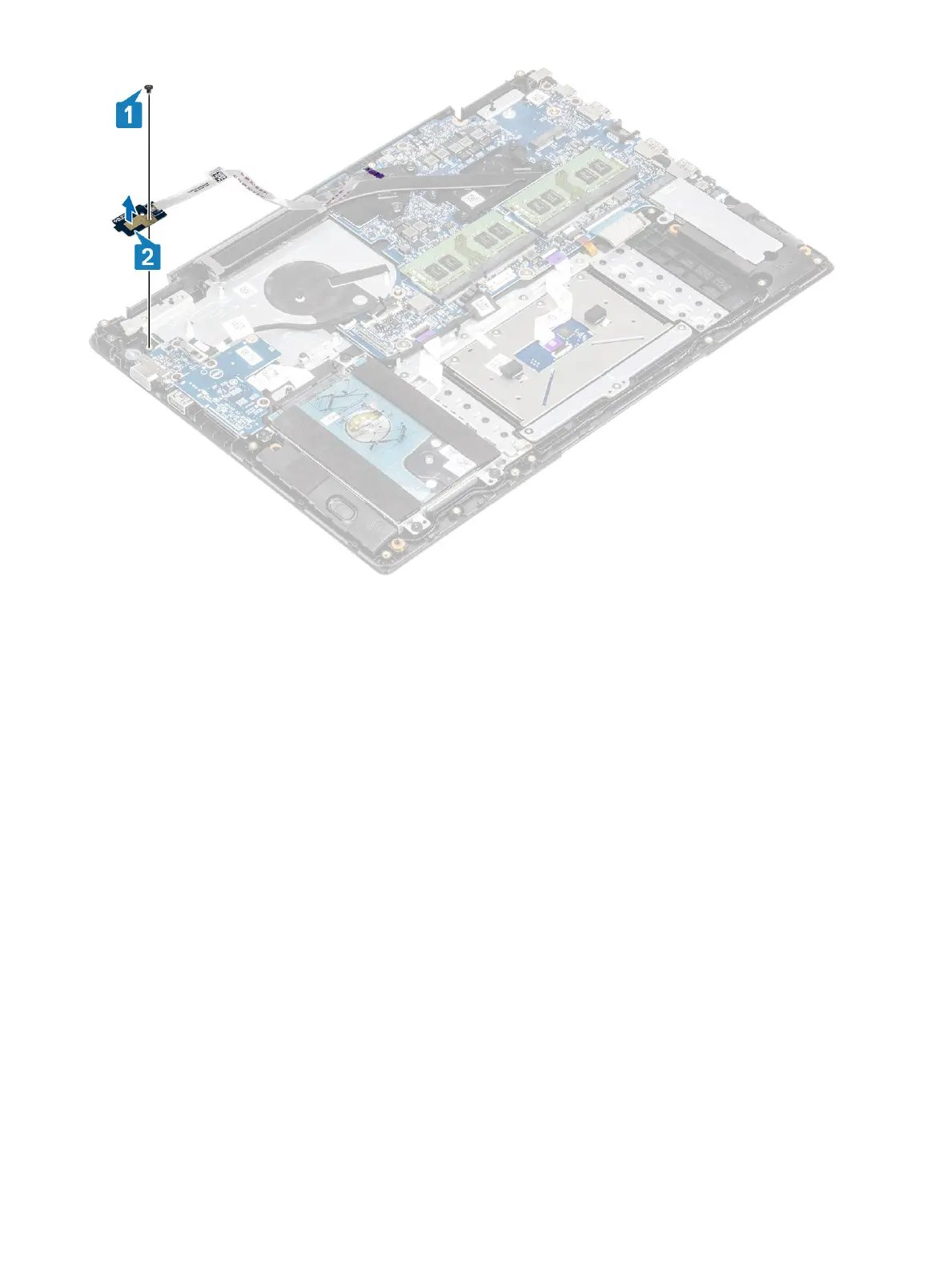

1 Place the power-button board into the slot on the palmrest and keyboard assembly [1].
2 Replace the single (M2x3) screw that secures the power button board to the palmrest and keyboard assembly [2].
Removing and installing components
69
