10 Remove the display assembly
Steps

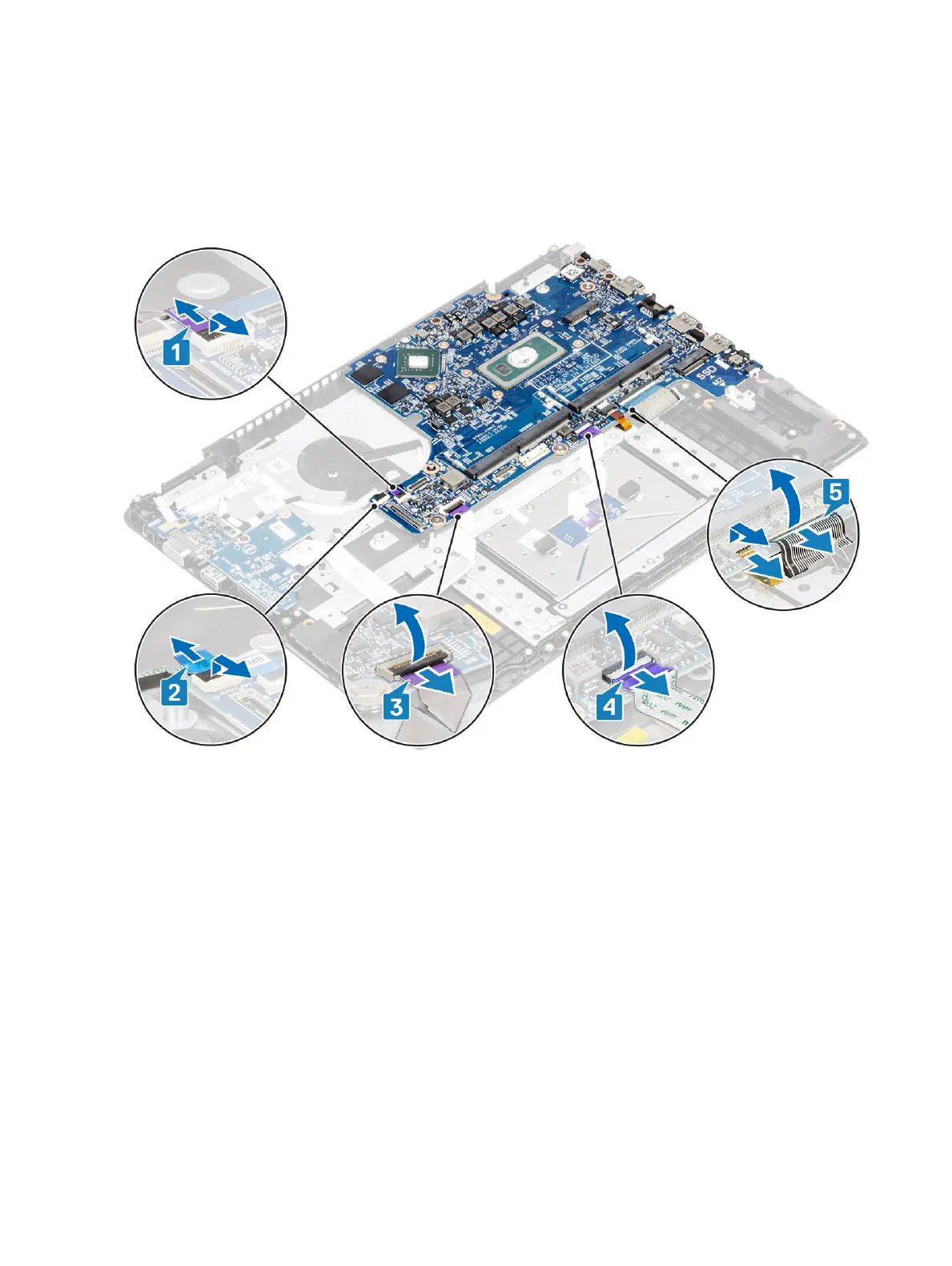

1 Disconnect the following cables from the system board:
a Power button board [1].
b eDP [2].
c IO board [3].
d Touchpad [4].
e Keyboard [5].
2 Disconnect the following cables from the system board:
a DC-in [1, 2].
b Speaker [3].
