5 Remove the WLAN
Steps

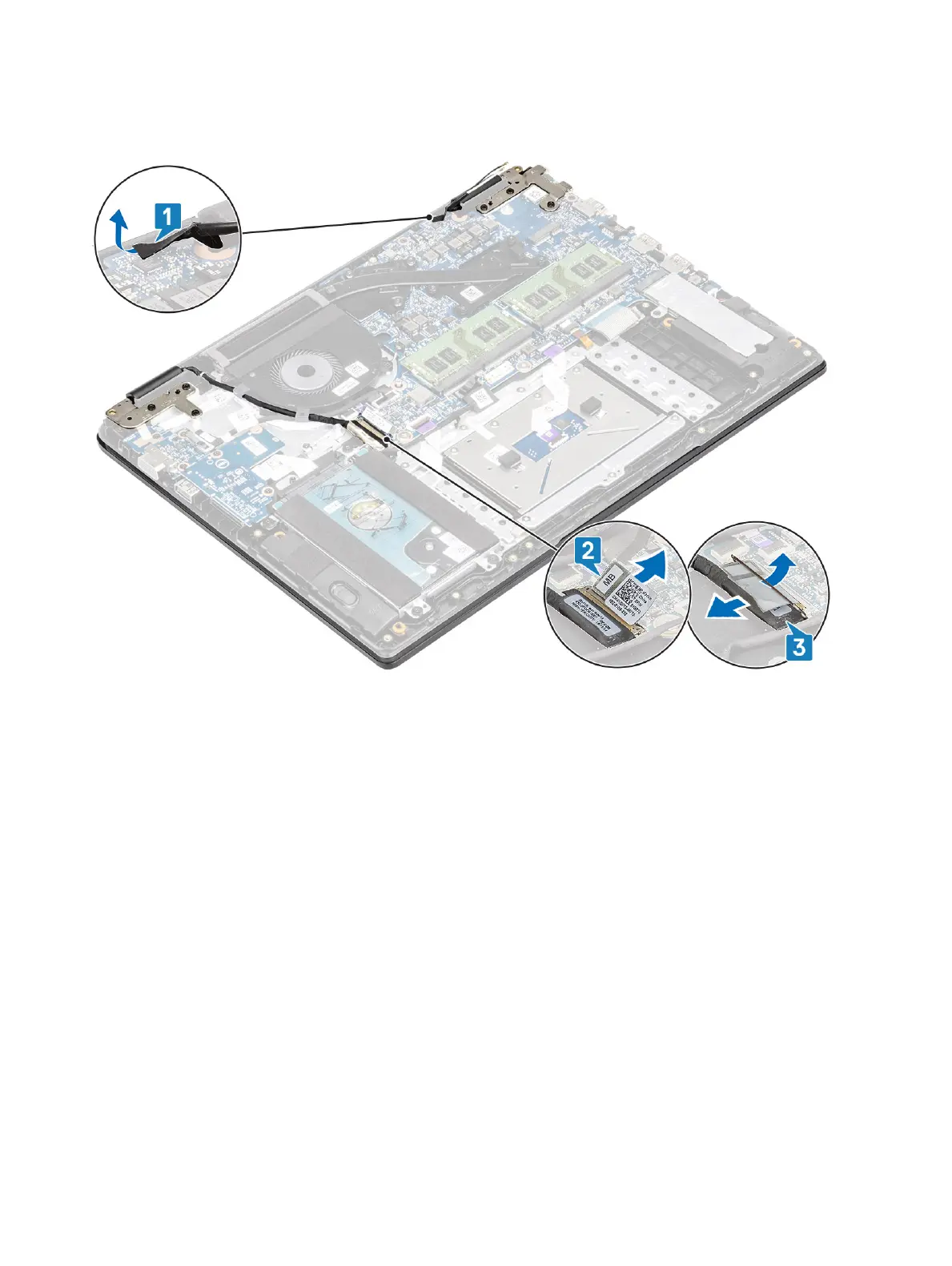

1 Peel o the tape securing the wireless antenna from the system board [1].
2 Disconnect the display cable from the connector on the system board [2, 3].
3 Unroute the display cable from the routing guides on the palmrest and keyboard assembly [1].
4 Remove the six (M2.5x5) screws that secure the left and right hinges to the system board, and palmrest and keyboard assembly [2].
