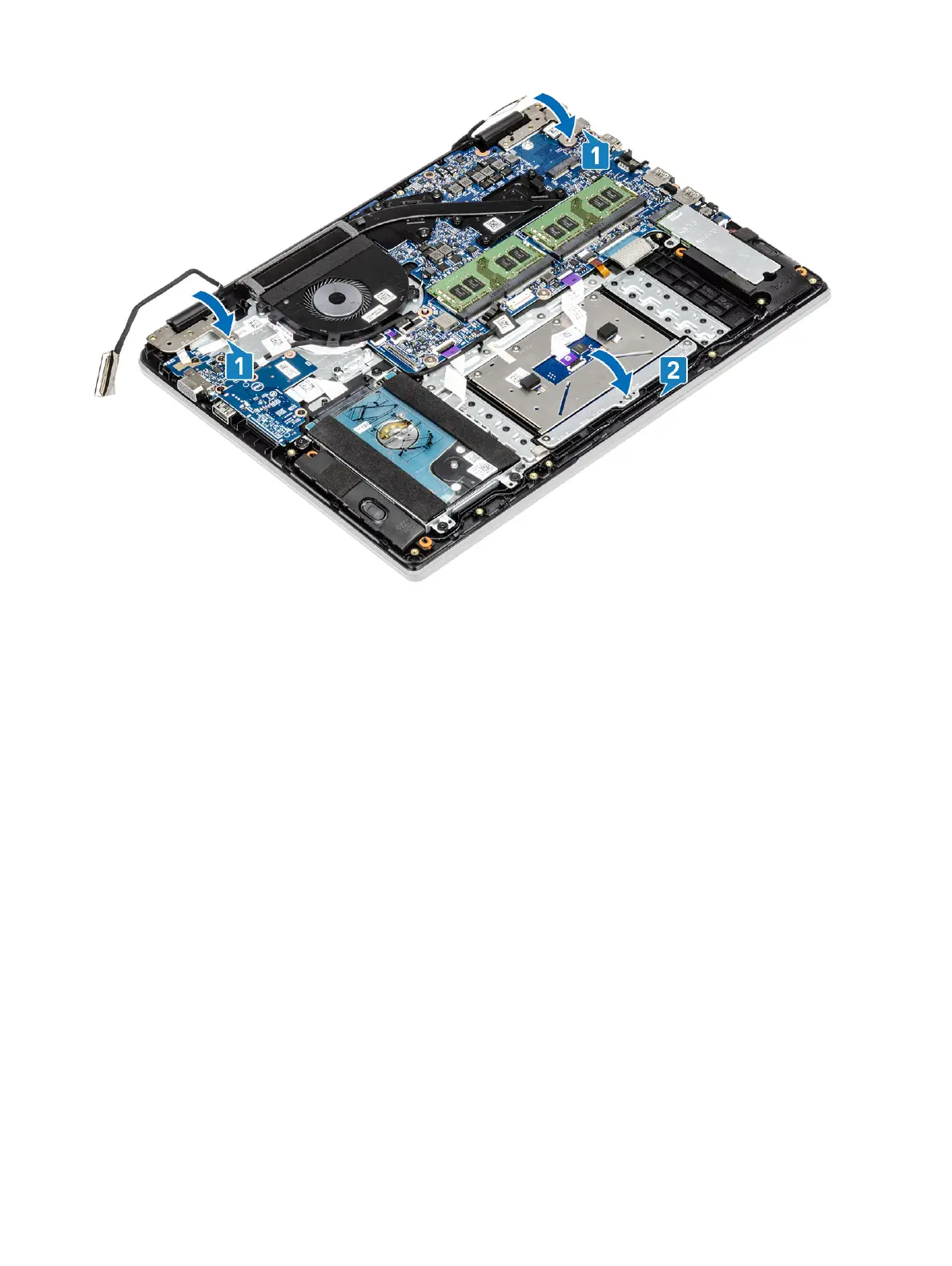

4 Replace the six (M2.5x5) screws that secure the left and right hinges to the system board, and palmrest and keyboard assembly [1].
5 Route the display cable through the routing guides on the palmrest and keyboard assembly [2].
84
Removing and installing components
