Steps

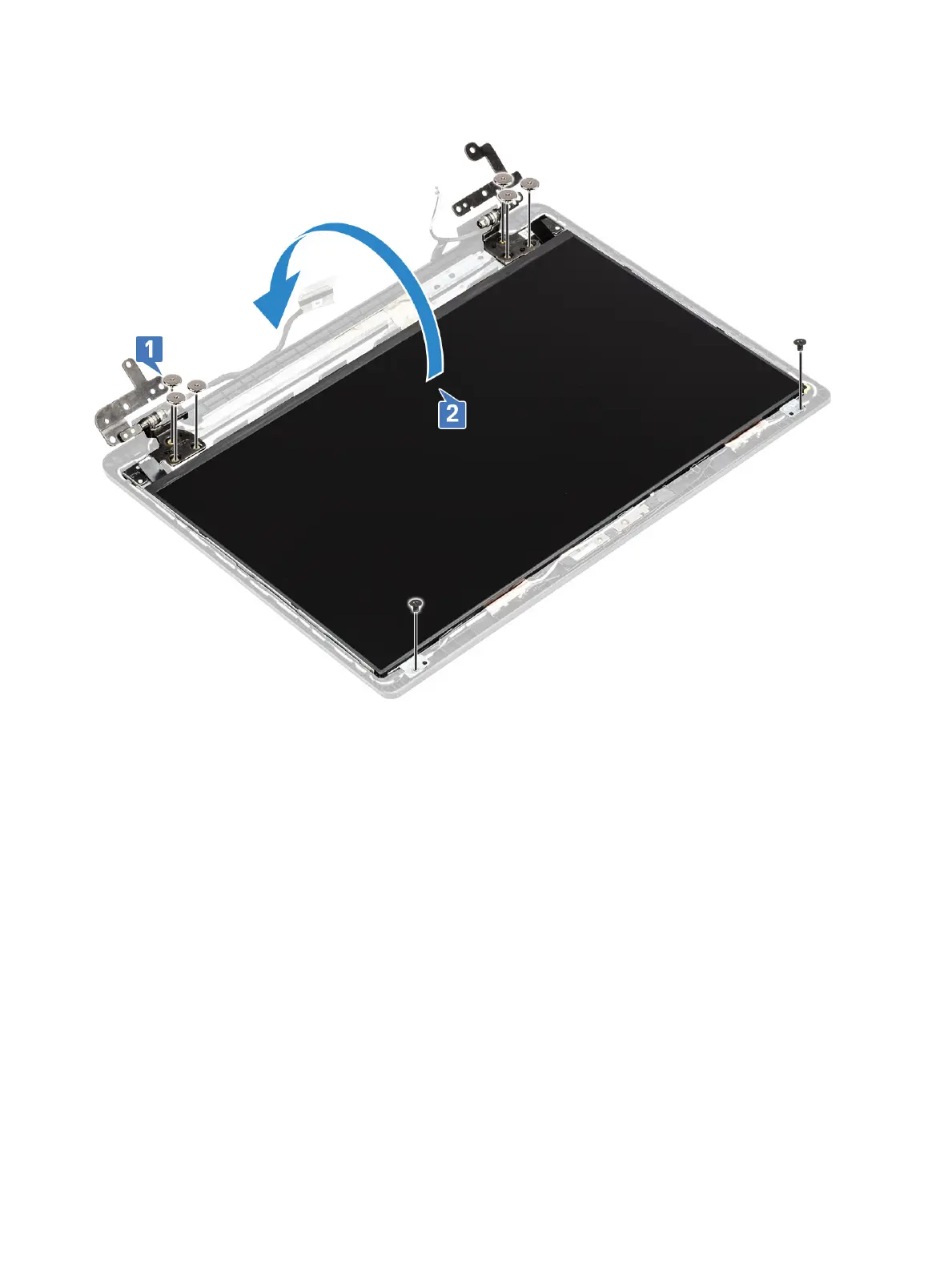

1 Remove the six (M2x2) and two (M2x3) screws that secure the display panel to the display back-cover [1].
2 Lift the display panel and turn it over [2].
3 Peel the tape that secures the display cable to the back of the display panel [1].
4 Lift the latch and disconnect the display cable from the display-panel cable connector [2].
5 Lift the display panel away from the display back-cover [3].
Removing and installing components
91
