6 Remove the display assembly
7 Remove the display bezel
8 Remove the display panel
Steps

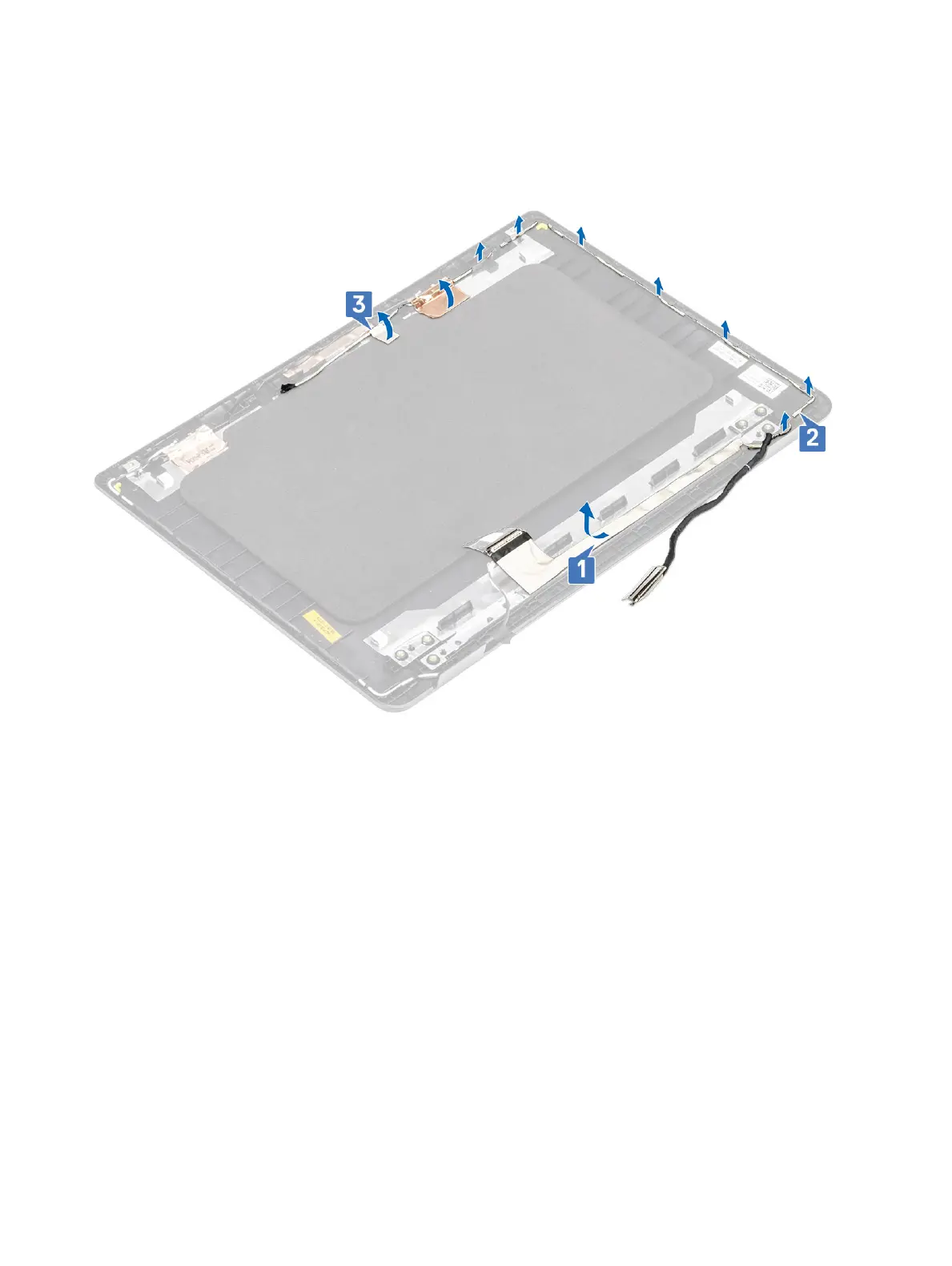

1 Remove the camera cable and the display cable from the routing guides on the display back-cover [1,2].
2 Peel the adhesive that secures the camera cable [3].
3 Lift the camera cable and the display cable o the display back-cover.
Removing and installing components
97
