Steps
1. Disconnect the battery cable from the system board, if applicable.
2. Remove the three (M2x3) screws that secure the battery to the palm-rest and keyboard assembly.
3. Peel the hard drive Flexible Flat Cable from the system board.
NOTE: This step is applicable only for systems shipped with a 2.5-inch hard drive.
4. Remove the battery from the palm-rest and keyboard assembly.
CAUTION: Carefully remove the battery so that battery does not tug on the hard drive Flexible Flat Cable.
Installing the 3-cell battery
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

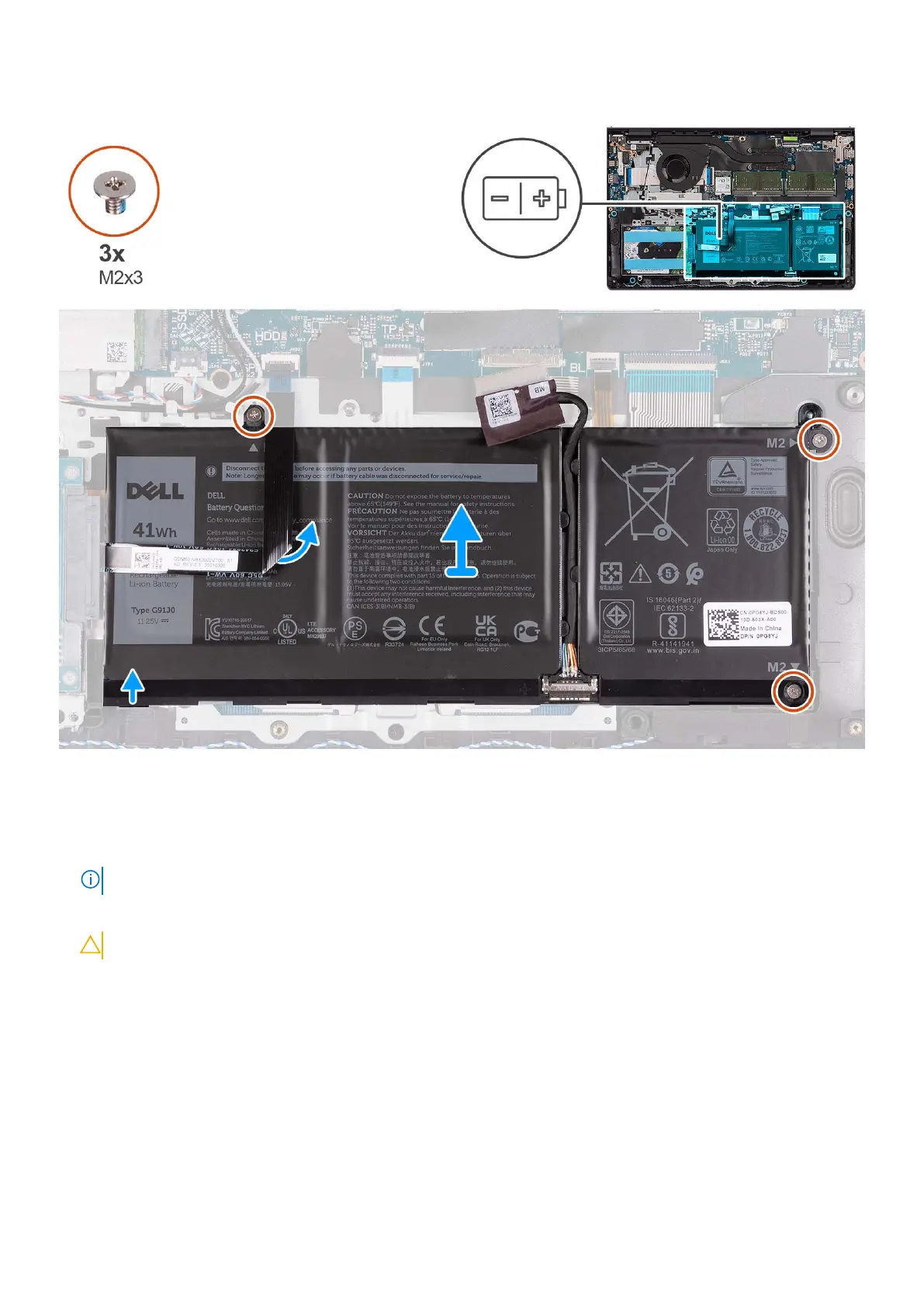

The following image indicates the location of the 3-cell battery and provides a visual representation of the installation procedure.
Removing and installing components
