Dell P112F - Base Cover Removal and Installation

Next steps
1. Install the base cover.
2. Install the SD card.
3. Follow the procedure in After working inside your computer.
I/O daughter board FFC
Removing the Input/Output daughterboard FFC
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the fan.
About this task

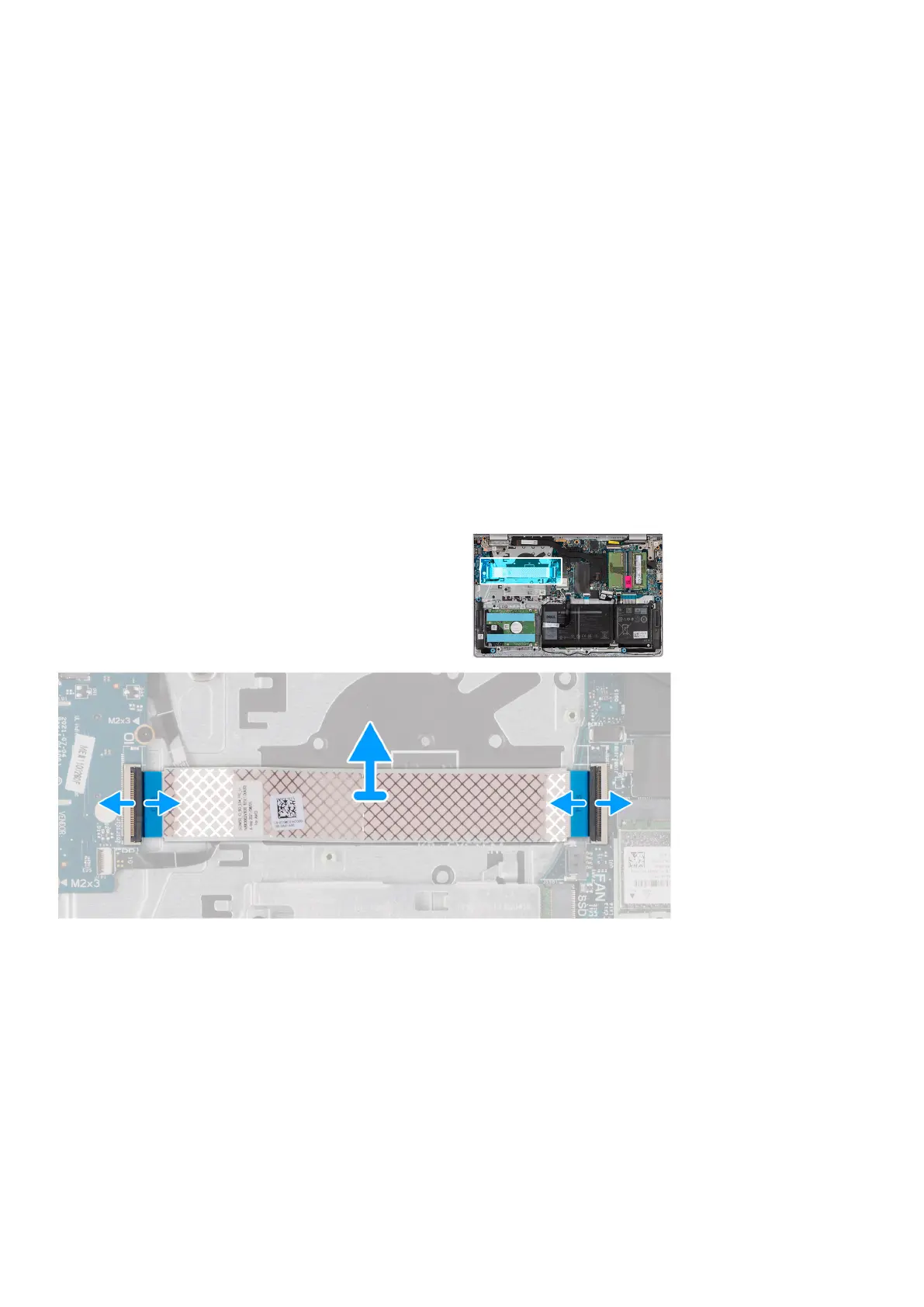

The following image indicates the location of the Input/Output daughter board FFC and provides a visual representation of the
removal procedure in an aluminum chassis.
For systems shipped with a plastic chassis:
40
Removing and installing components
