Camera module
Removing the camera module
Prerequisites
NOTE: This procedure is applicable for systems with a plastic chassis only.
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the wireless card.
5. Remove the display assembly.
6. Remove the hinge caps.
7. Remove the display bezel.
8. Remove the hinges.
9. Remove the display panel.
About this task

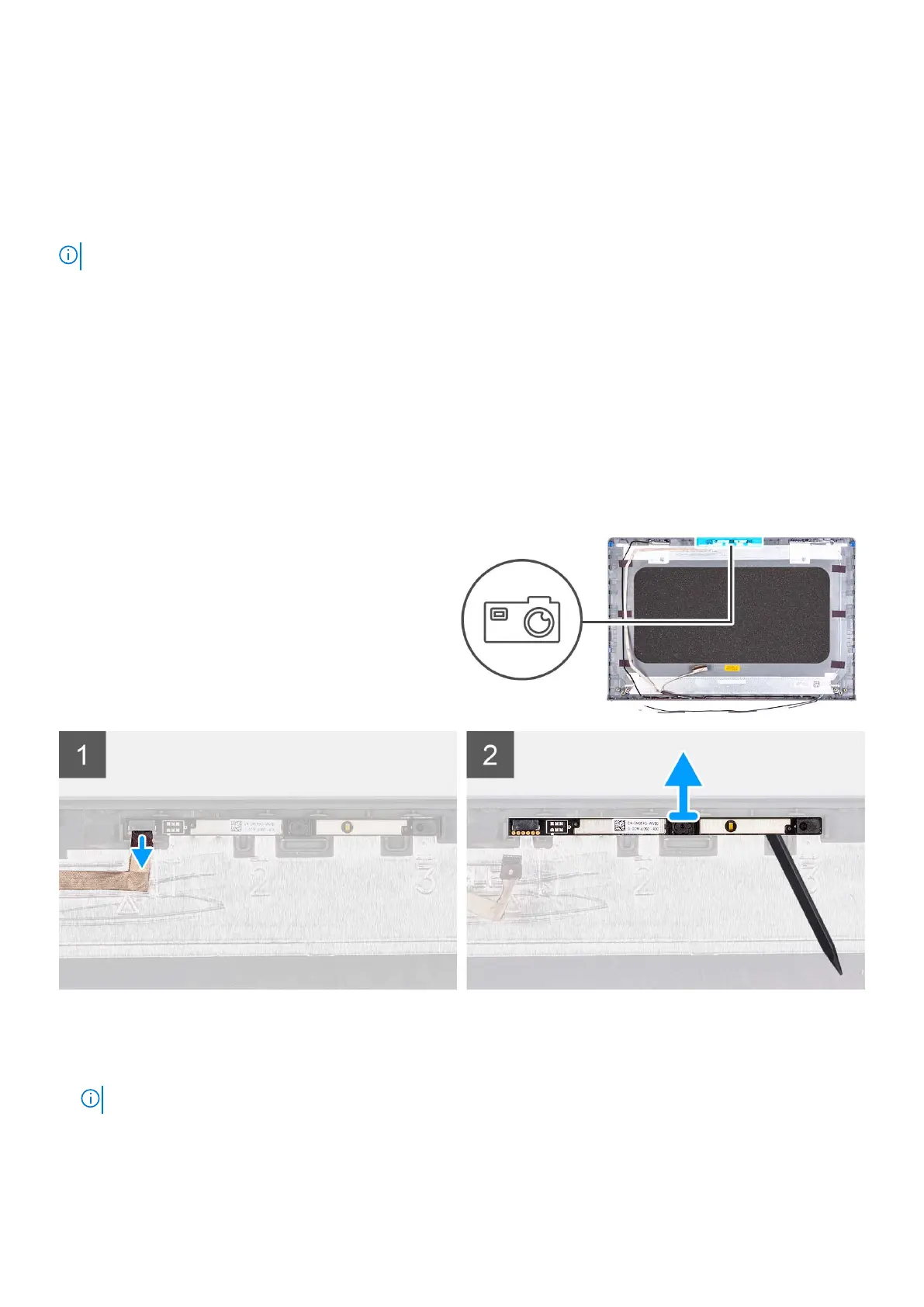

The following images indicate the location of the camera module and provide a visual representation of the removal procedure.
Steps
1. Using the pull tab, disconnect the camera cable from the camera module.
2. Using a plastic scribe, pry the camera module from the display assembly.
NOTE: Start prying the camera module in a sequential order 1>2>3 as indicated on the display back cover.
3. Lift the camera module from the display assembly.
84
