3. Remove the base cover.
4. Remove the wireless card.
5. Remove the I/O board.
6. Remove the display assembly.
About this task

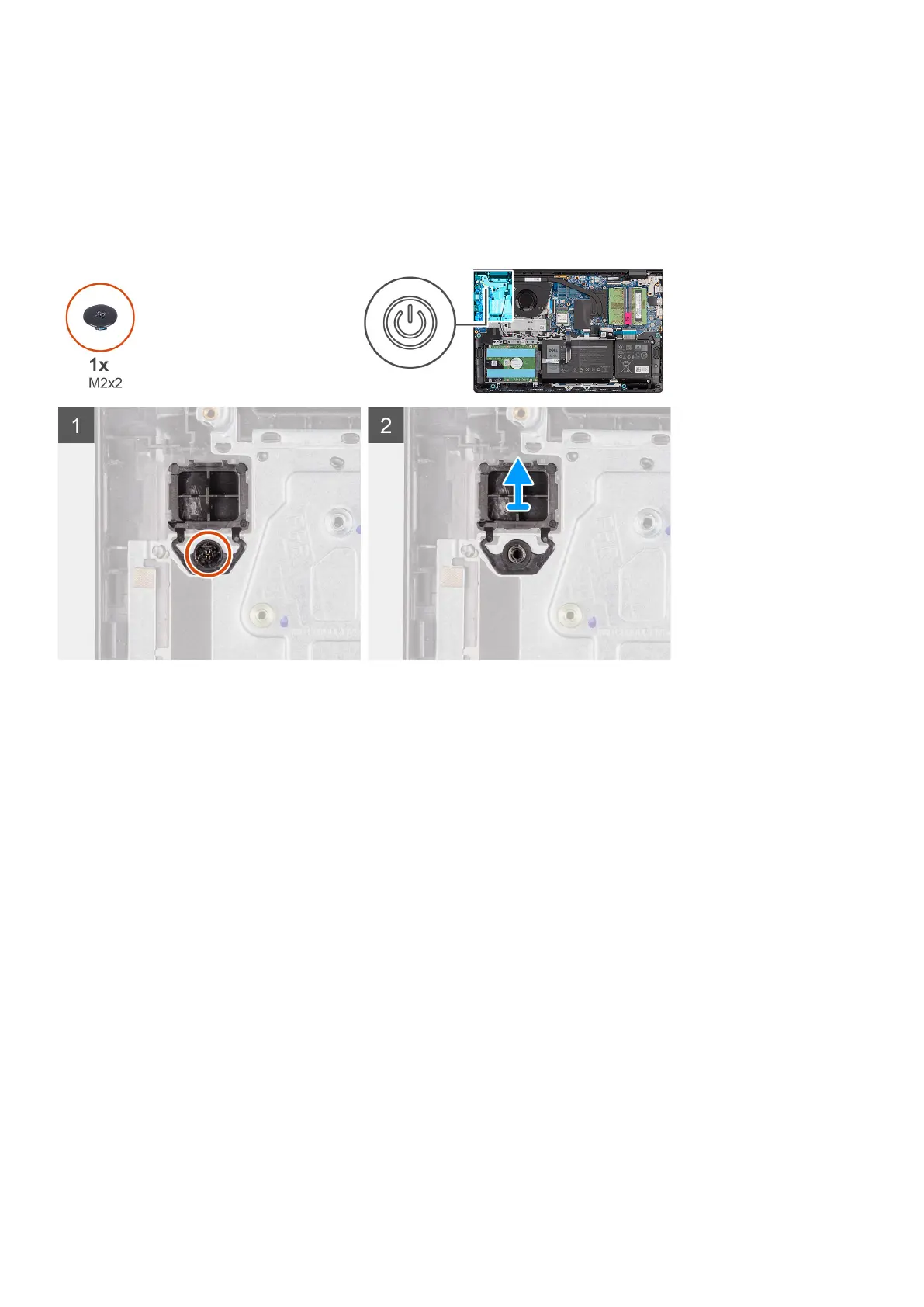

The following images indicate the location of the power button and provide a visual representation of the removal procedure.
Steps
1. Remove the single (M2x2) screw securing the power button to the palm-rest and keyboard assembly.
2. Remove the power button from the computer.
Installing the power button
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the power button and provide a visual representation of the installation procedure.
Removing and installing components
55
