Steps

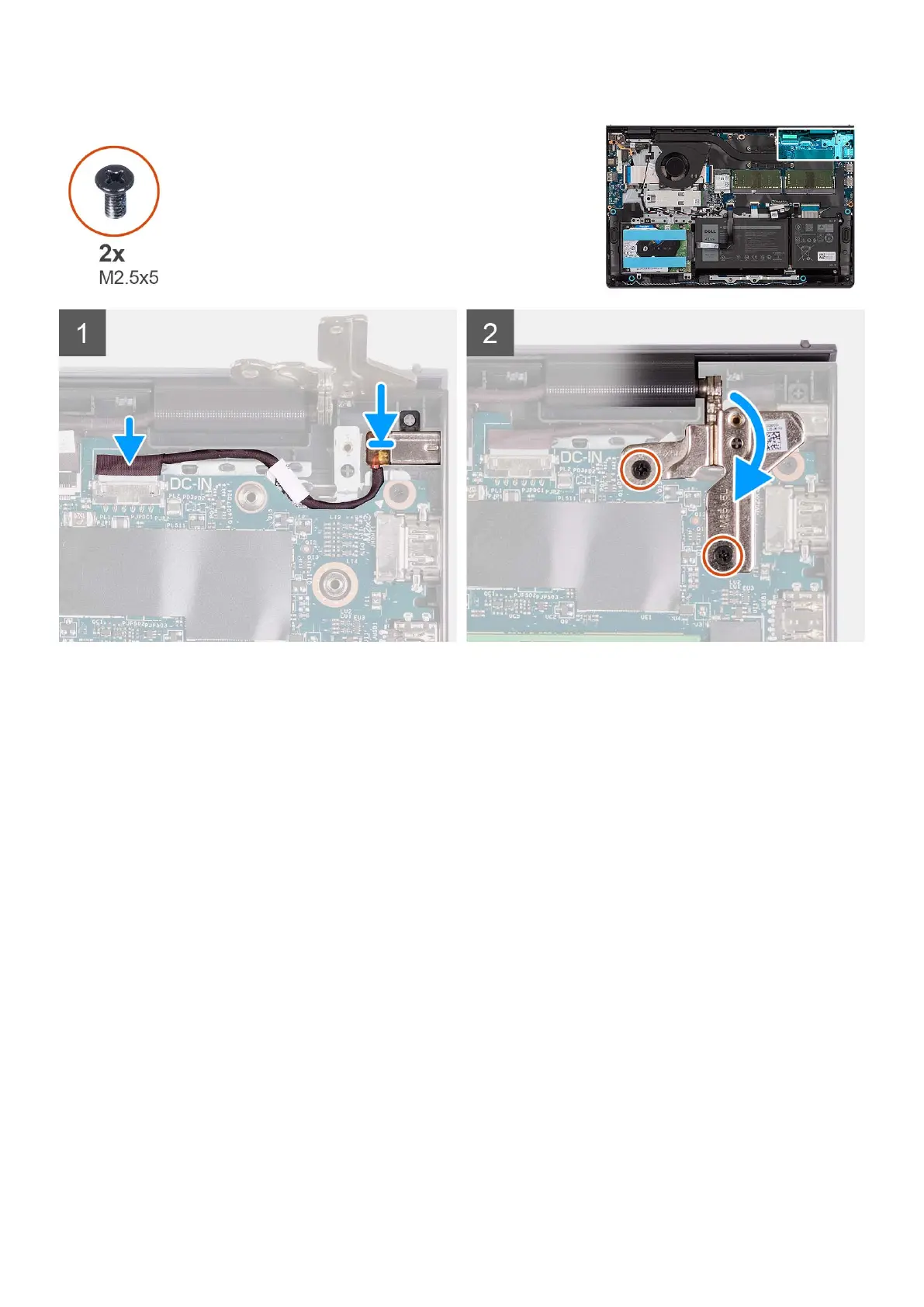

1. Using the alignment post, place the power-adapter port into its slot on the palm-rest and keyboard assembly.
2. Connect the power-adapter port cable to the connector on the system board.
3. Fold the right hinge down and install the two (M2.5x5) screws to secure it to the palm-rest and keyboard assembly.
Next steps
1. Install the display assembly.
2. Install the base cover.
3. Install the SD card.
4. Follow the procedure in After working inside your computer.
Palm-rest and keyboard assembly
Removing the palm-rest and keyboard assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the 3-cell battery or 4-cell battery (whichever applicable).
5. Remove the M.2 2230 solid-state drive or M.2 2280 solid-state drive (whichever applicable).
6. Remove the memory modules.
7. Remove the wireless card.
Removing and installing components
101
