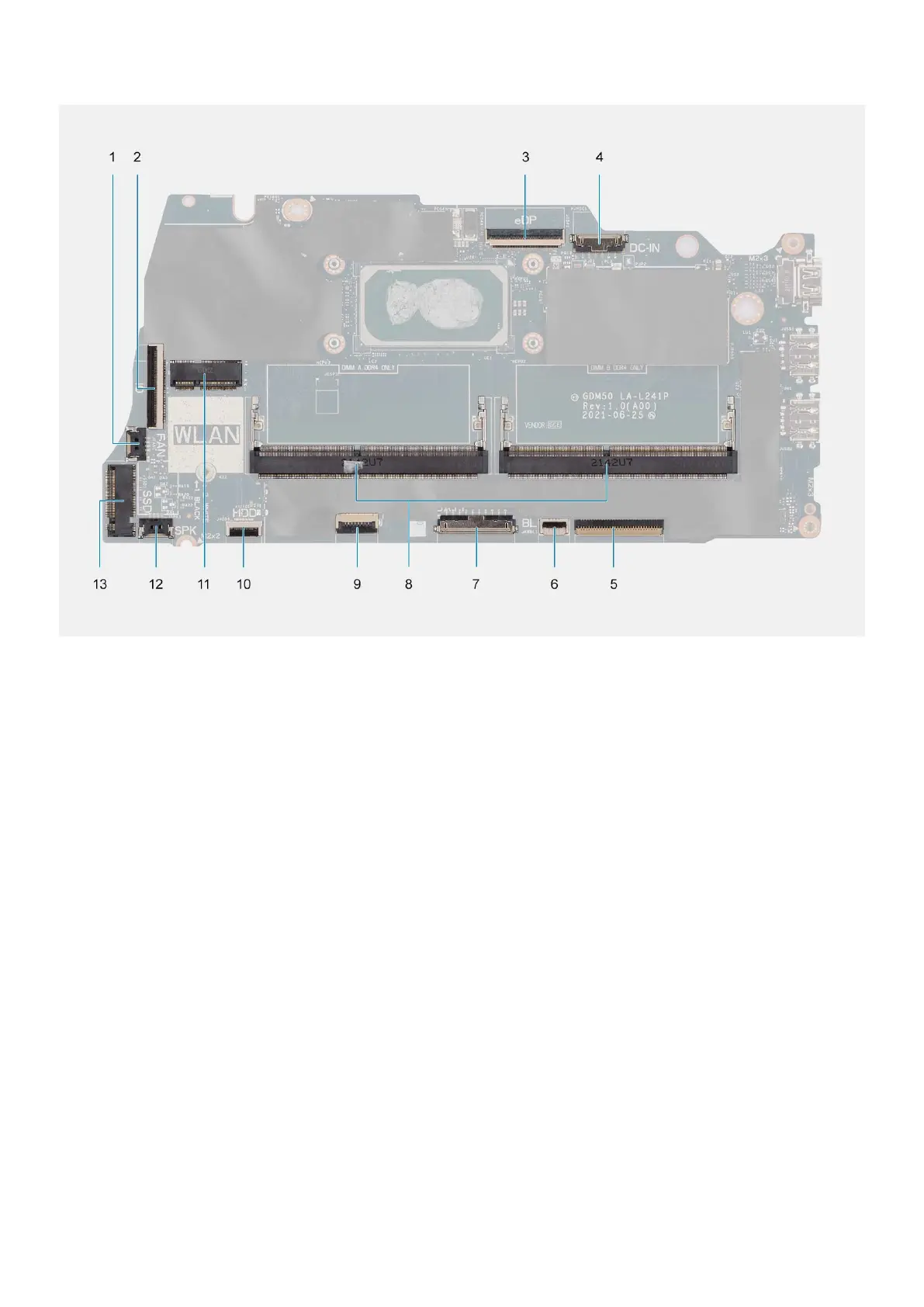

1. Fan connector 2. I/O board FFC connector
3. eDP connector 4. DC-in port connector
5. Keyboard FFC connector 6. Keyboard-backlight FFC connector
7. Battery connector 8. Memory modules
9. Touchpad FFC connector 10. Hard drive FFC connector
11. Wireless connector 12. Speaker cable connector
13. Solid-state drive connector
The following images indicate the location of the system board and provide a visual representation of the removal procedure.
94
Removing and installing components
