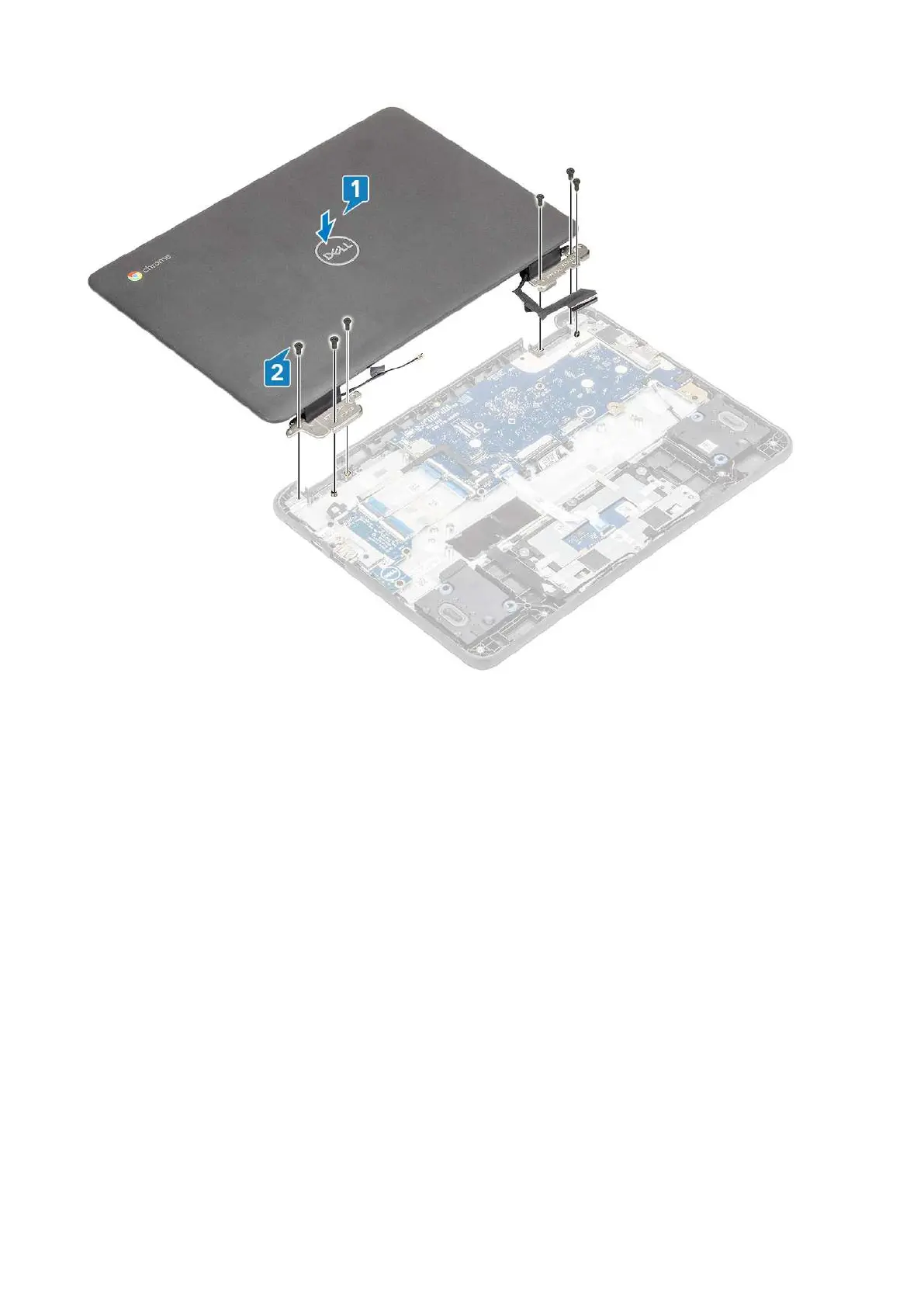

4. Lift the system and close the display.
5. Connect the display cable to the connector on the system board [1].
6. Affix the adhesive tape to secure the display cable to the system [2].
7. Place the display cable bracket to secure the display cable [3].
8. Replace the single (M2.0x4.0) screw that secures the display cable bracket to the system [4].
