Dell P29T - Page 51

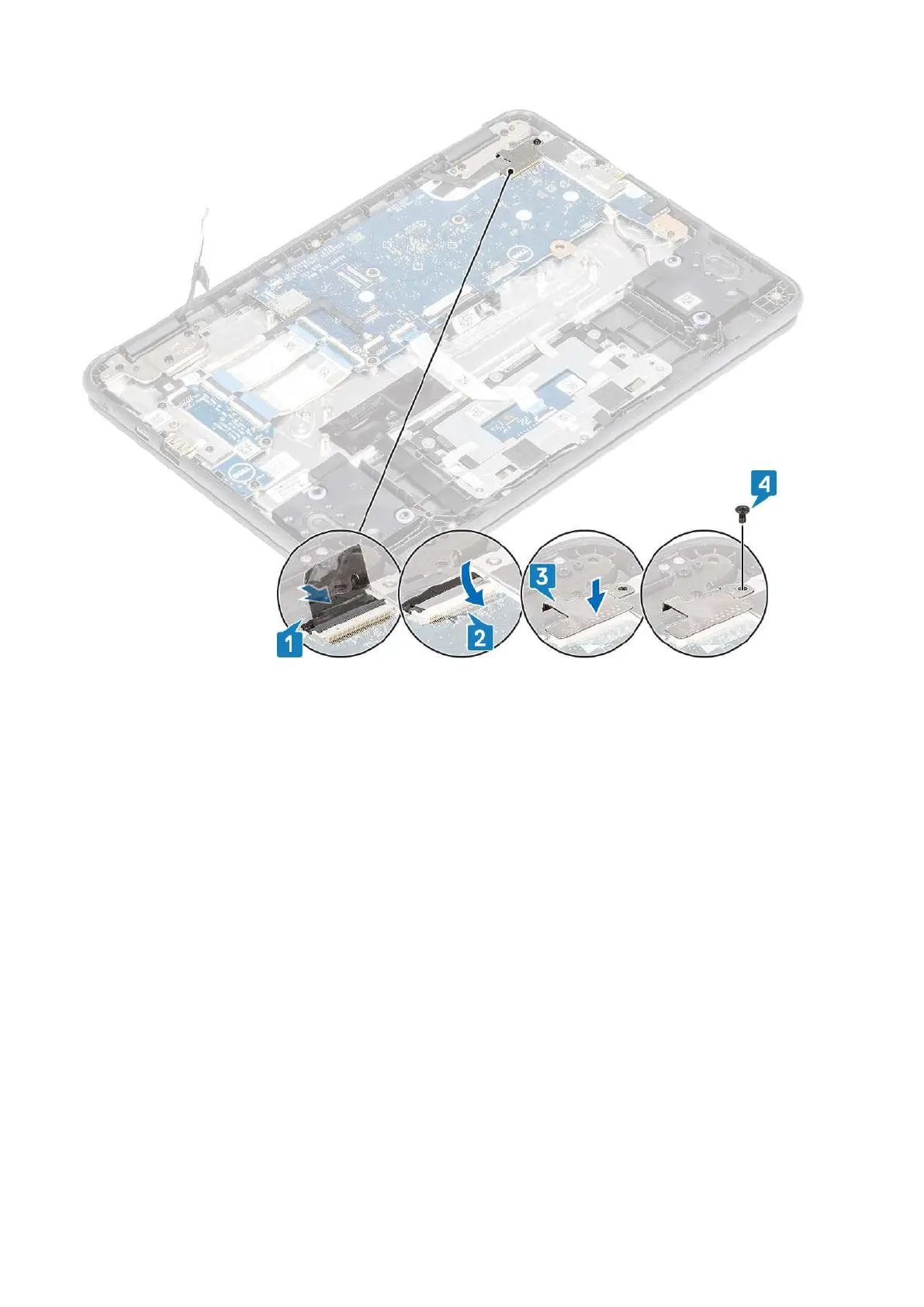

9. Connect the wireless antennas to the wireless module [1].
10. Place the wireless bracket to secure the wireless antennas and replace the single (M2.0x3.0) screw that secures the wireless bracket
to the system [2, 3].
Removing and Installing
51
