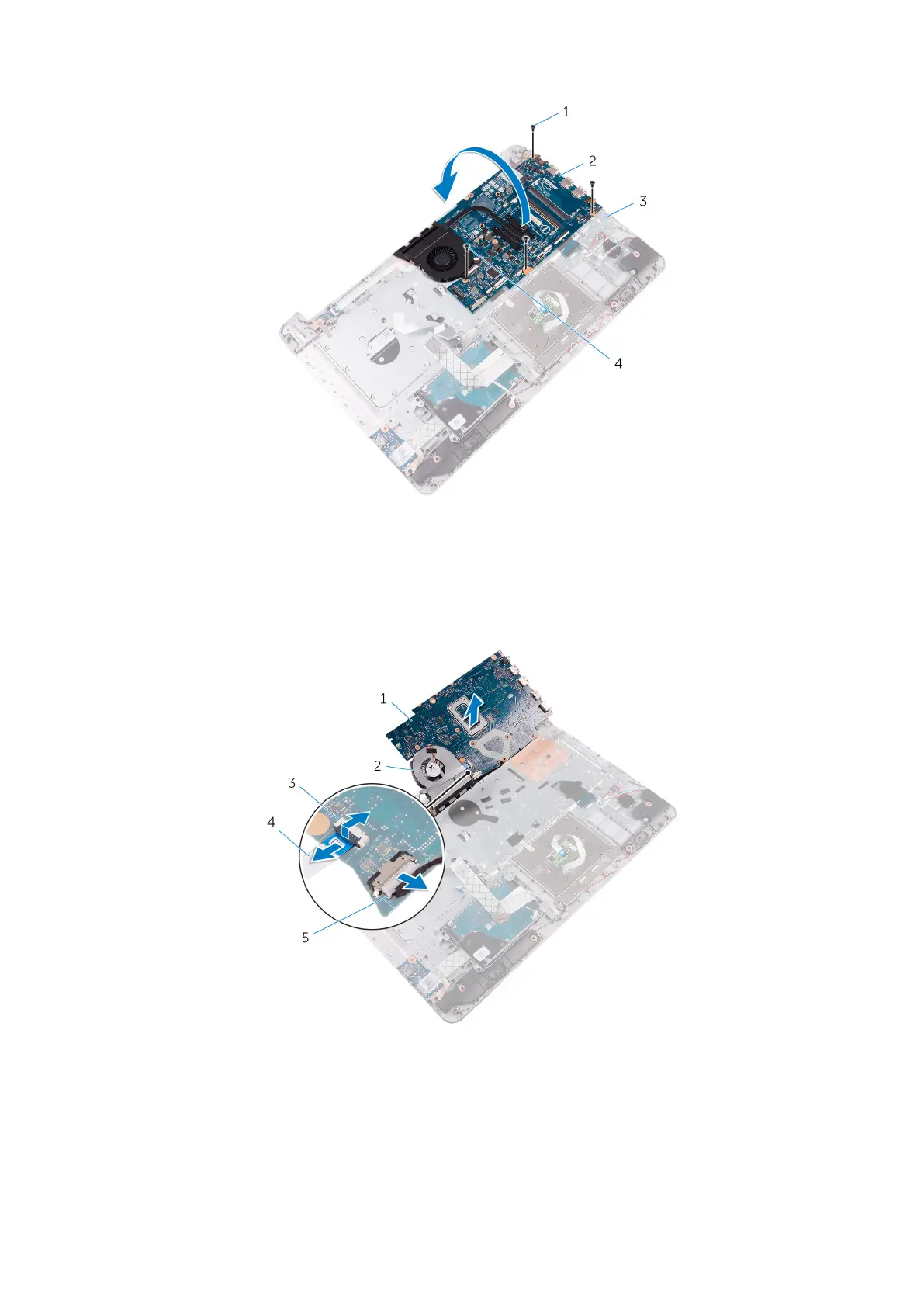

1. M2x3 screws (3) 2. system board
3. palm rest and keyboard assembly 4. M2.5x5 screw (1)
9. Disconnect the power-adapter port cable from the system board.
10. Lift the latch and disconnect the power-button cable from the system board.
11. Peel off the power-button cable from the back of the heat-sink assembly.
1.
system board 2. heat-sink assembly
3. latch 4. power-button cable
5. power-adapter port cable
12. Remove the heat-sink assembly.
54
Removing the system-board assembly
