Dell P56F Service Manual

3 Turn the solid-state drive assembly over, then remove the screw (M2x2) that
secures the solid-state drive to the solid-state drive bracket.

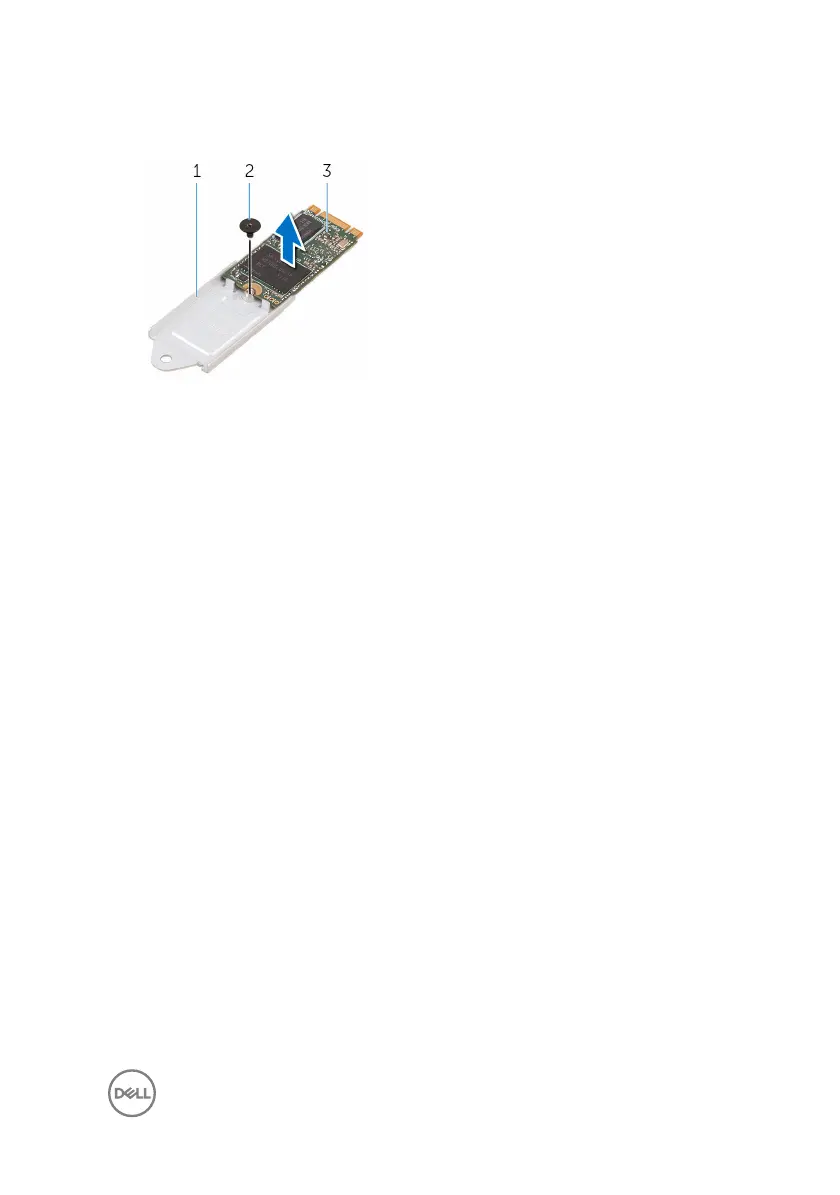

Figure 10. Removing the solid-state drive bracket
1 solid-state drive bracket 2 screw
3 solid-state drive
4 Lift the solid-state drive off the solid-state drive bracket.
33

Dell P56F Specifications

General

Model	Dell P56F
Category	Laptop
Display Size	15.6 inches
Storage	256GB SSD
Display	15.6-inch
Display Resolution	1920 x 1080
GPU	Intel HD Graphics 620
Operating System	Windows 10 Home
Battery	42Whr
Weight	2.0 kg
CPU	Intel Core i5-7200U
Graphics	Intel UHD Graphics 620
