Dell P56F Service Manual

Procedure
NOTE: The touch-screen cable is available only on laptop configurations
with touch displays.
1 Remove the screw (M2x2) that secures the display-cable bracket to the system
board.
2 Lift the solid-state drive bracket to access the display cable.
3 Disconnect the display cable from the system board.

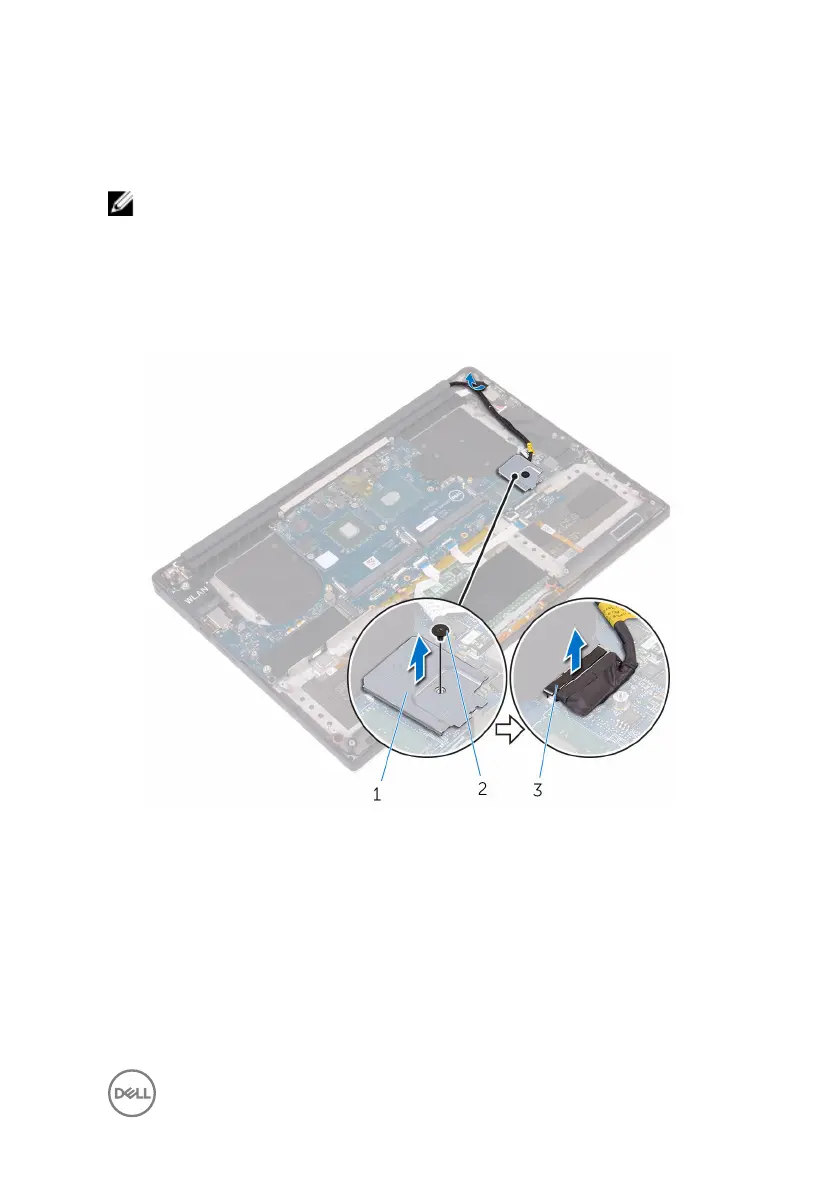

Figure 21. Disconnecting the display cable
1
display-cable bracket 2 screw
3 display cable
4 Disconnect the power-adapter port cable, speaker cable, keyboard-control
board cable, touch-pad cable and fingerprint reader cable from the system
board.
59
