Procedure
1 Peel o the tape to access the screws on the display hinges.

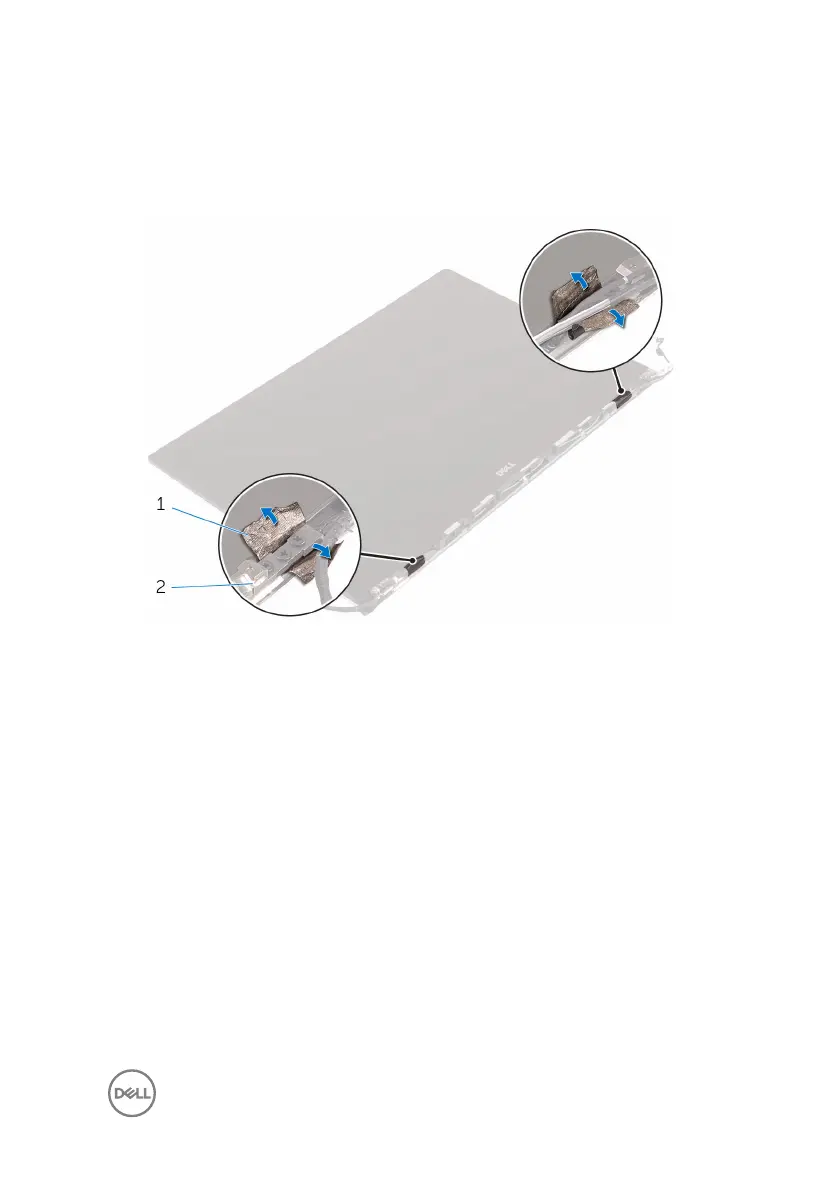

Figure 34. Peeling the tape
1
tape 2 display hinges (2)
2 Remove the six screws (M2.5x5) that secure the display hinges to the display
assembly.
87
