Dell P56F Service Manual

6 Lift the video fan (JFAN_2) away from the palm-rest assembly.

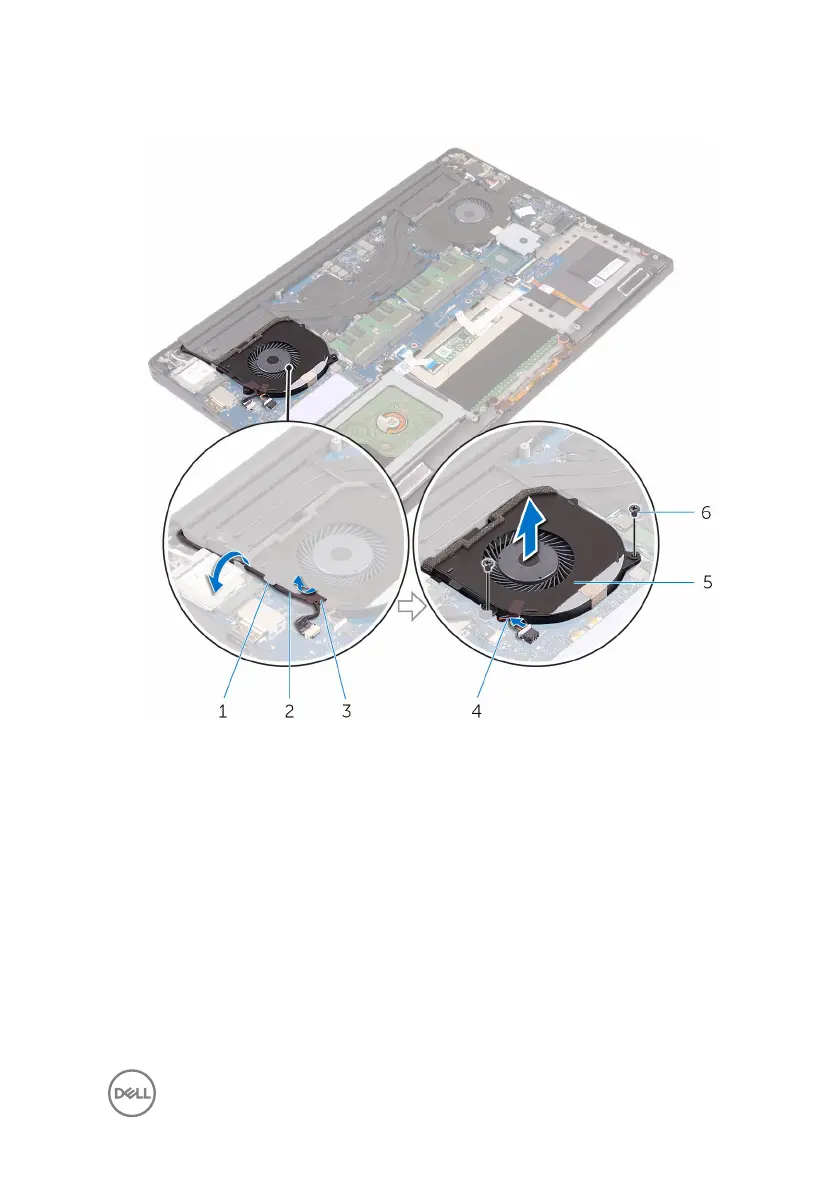

Figure 16. Removing the video fan
1
routing guide 2 touch-screen cable
(optional)
3 tape 4 fan cable
5 video fan (JFAN_2) 6 screws (2)
7 Remove the two screws (M2x4) that secure the processor fan (JFAN_1) to the
system board.
8 Note the routing of the display cable and remove the cable from the processor
fan (JFAN_1).
9 Disconnect the processor fan (JFAN_1) cable from the system board.
47
