7 Carefully lift the display assembly from the palm-rest assembly

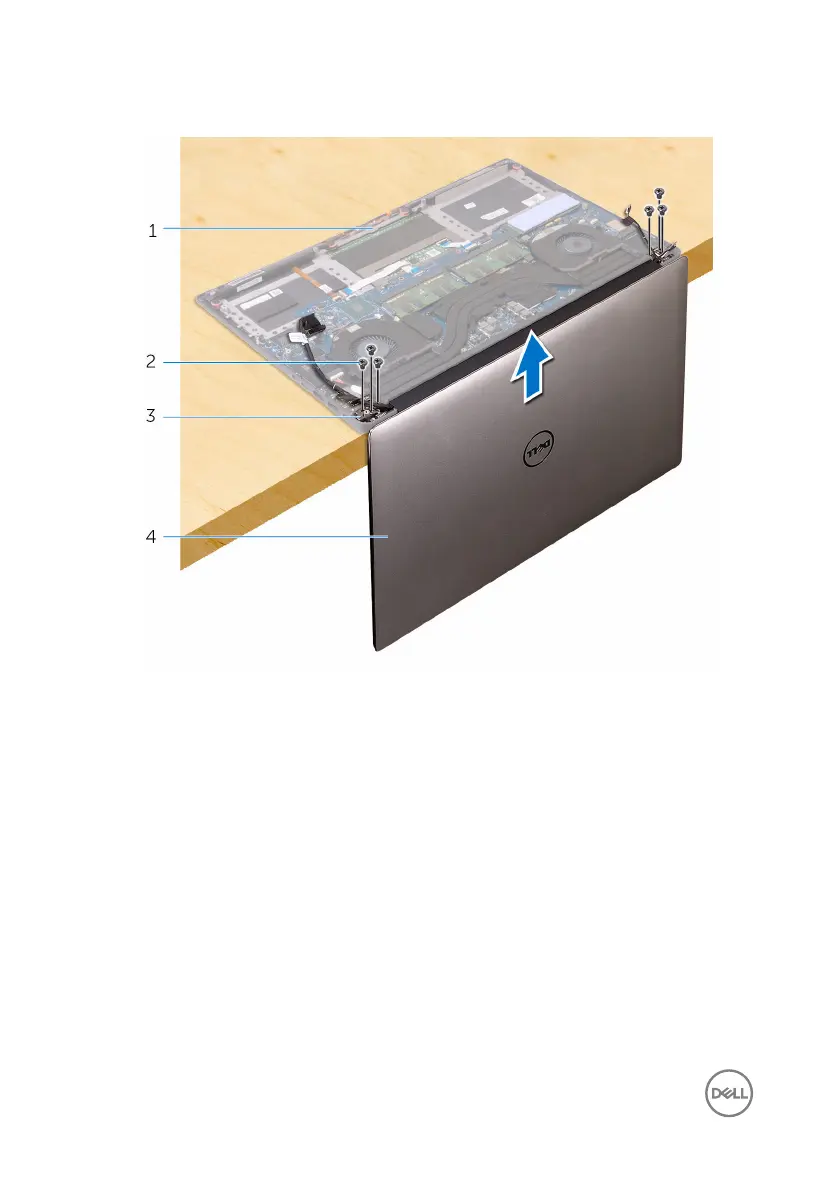

Figure 29. Removing the screws that secure the display hinges to palm-rest
assembly
1
palm-rest assembly 2 screws (6)
3 display hinges (2) 4 display assembly
76
