Dell PowerEdge 2970 - Page 67

Installing System Components 67
6 If you are installing a SAS RAID controller, install the RAID battery. See "Installing a RAID Battery" on
page 69.

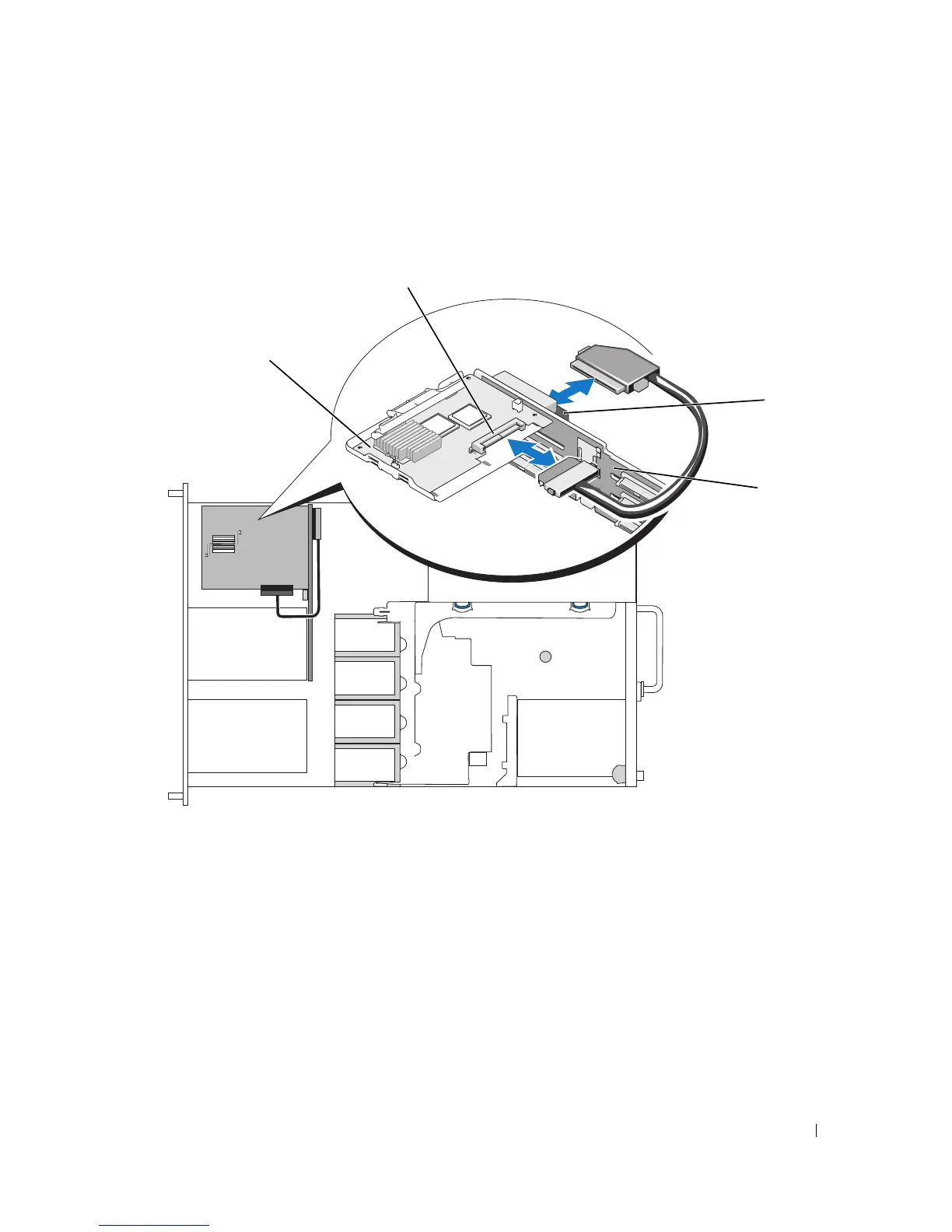

Figure 3-10. SAS Controller Daughter Card Cabling
1 SAS controller daughter card 2 SAS controller 0 3 backplane connector A
(SAS_A)
4 SAS/SATA backplane
1
4
3
2
