120 Installing System Components

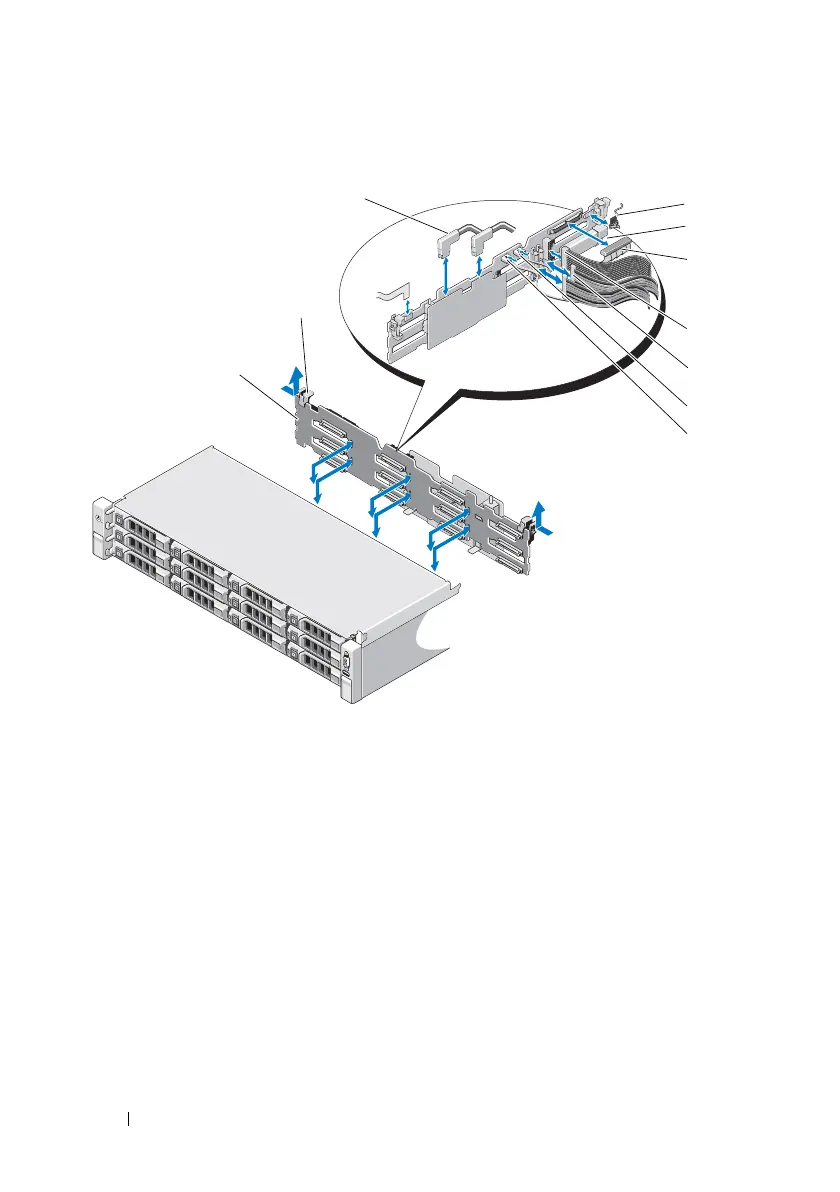

Figure 3-24. Removing and Installing a SAS Backplane
1 SAS backplane 2 backplane retention latches (2)
3 SAS cables 4 control panel module cable
5 USB memory key connector 6 SAS backplane power cable
7 control panel cable 8 internal hard drive cables (2)
9 USB cable 10 SAS backplane cable
1
3
7
2
8
9
6
4
10
5
